STMicroelectronics-STH6N95K5-2 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	950 V
Current - Continuous Drain (Id) @ 25°C:	6A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	1.25Ohm @ 3A, 10V
Vgs(th) (Max) @ Id:	5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs:	13 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	450 pF @ 100 V
FET Feature:	-
Power Dissipation (Max):	110W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	H2Pak-2
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB

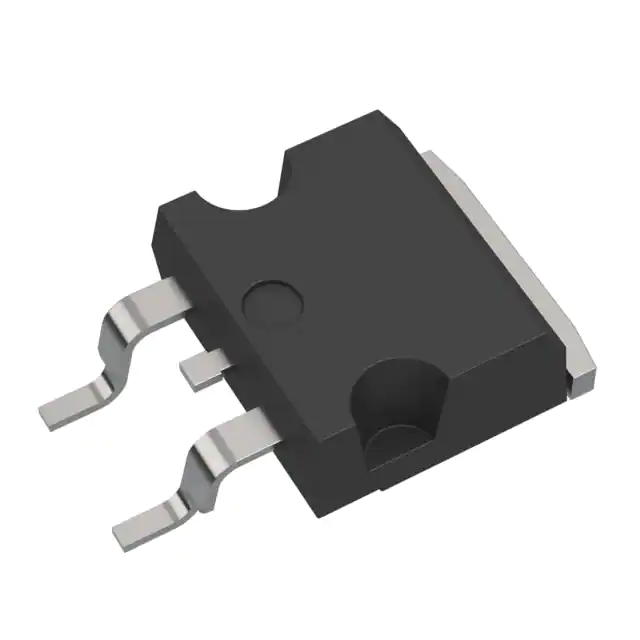

STMicroelectronics STH6N95K5-2
