STMicroelectronics-STH3N150-2 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	1500 V
Current - Continuous Drain (Id) @ 25°C:	2.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	9Ohm @ 1.3A, 10V
Vgs(th) (Max) @ Id:	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	29.3 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	939 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	140W (Tc)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	H²PAK
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab) Variant

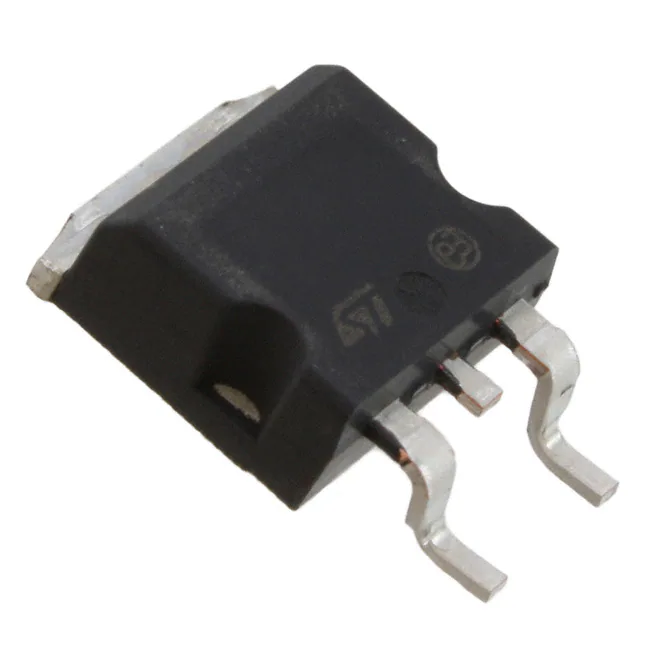

STMicroelectronics STH3N150-2
