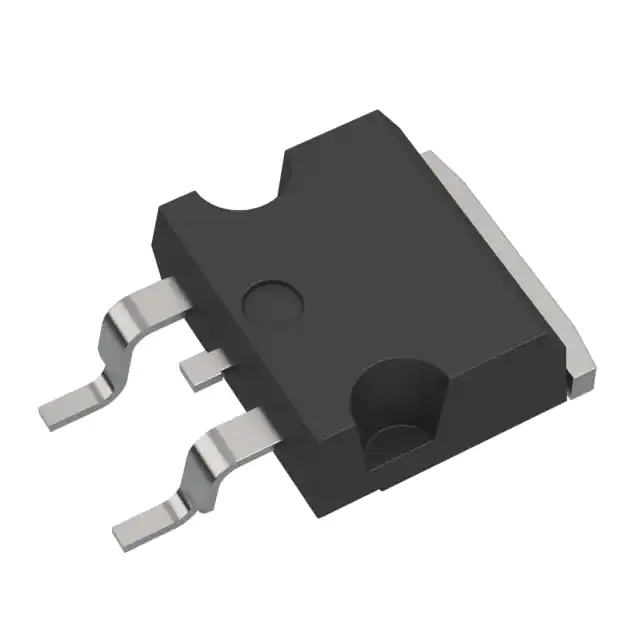

| Part Number | STH310N10F7-2 | STH315N10F7-2 | STH310N10F7-6 | STH110N10F7-2 |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 180A (Tc) | 180A (Tc) | 180A (Tc) | 110A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 2.5mOhm @ 60A, 10V | 2.3mOhm @ 60A, 10V | 2.5mOhm @ 60A, 10V | 6.5mOhm @ 55A, 10V |
| Vgs(th) (Max) @ Id | 3.8V @ 250µA | 4.5V @ 250µA | 3.8V @ 250µA | 4.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 180 nC @ 10 V | 180 nC @ 10 V | 180 nC @ 10 V | 72 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 12800 pF @ 25 V | 12800 pF @ 25 V | 12800 pF @ 25 V | 5117 pF @ 50 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 315W (Tc) | 315W (Tc) | 315W (Tc) | 150W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | H2Pak-2 | H2Pak-2 | H2PAK-6 | H2Pak-2 |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-7, D²Pak (6 Leads + Tab) | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
