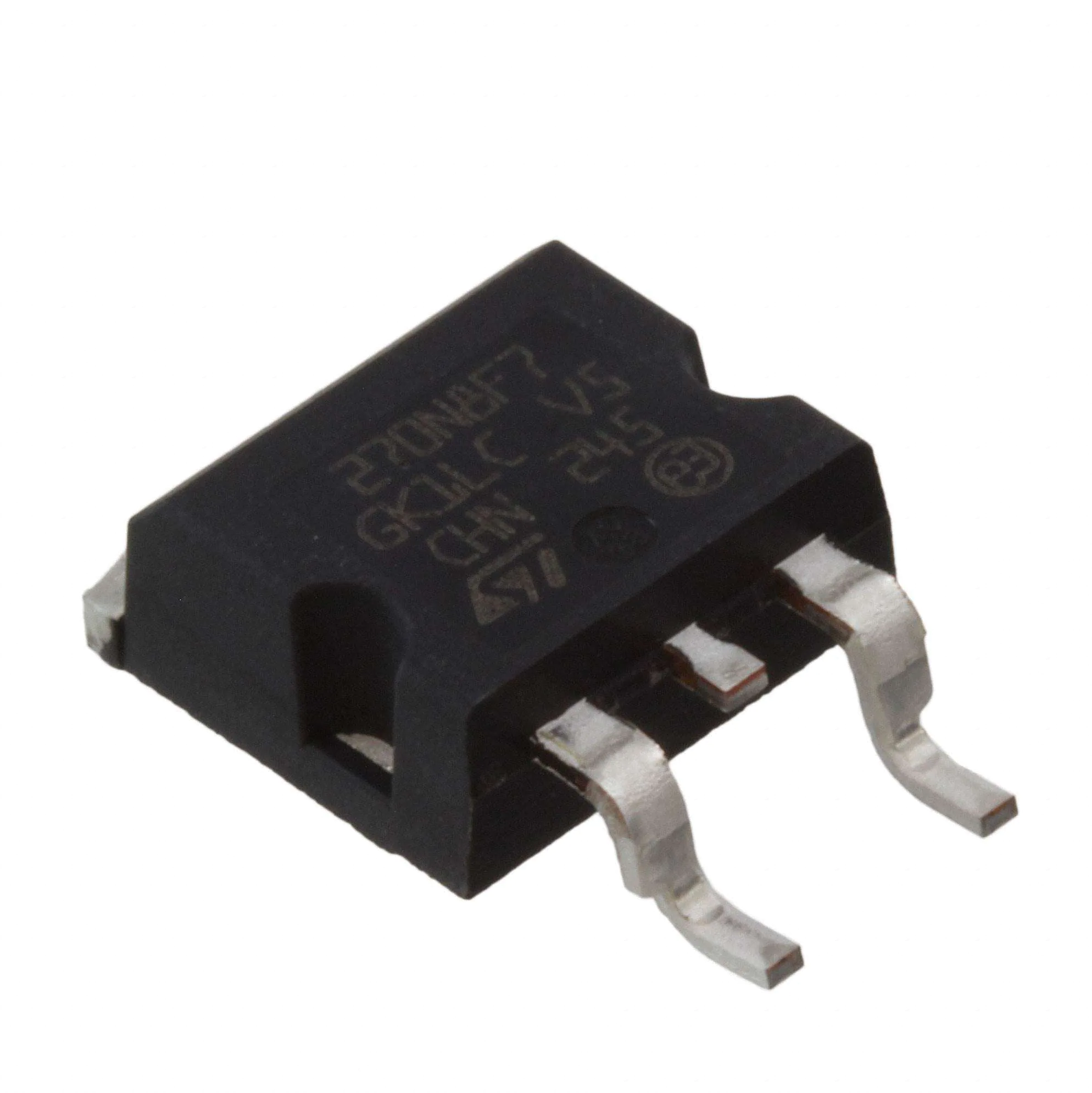

| Part Number | STH270N8F7-2 | STH270N8F7-6 | STH170N8F7-2 |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V | 80 V | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 180A (Tc) | 180A (Tc) | 120A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 2.1mOhm @ 90A, 10V | 2.1mOhm @ 90A, 10V | 3.7mOhm @ 60A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA | 4.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 193 nC @ 10 V | 193 nC @ 10 V | 120 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 13600 pF @ 50 V | 13600 pF @ 50 V | 8710 pF @ 40 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 315W (Tc) | 315W (Tc) | 250W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | H²PAK | H²PAK | H2Pak-2 |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab) Variant | TO-263-7, D²Pak (6 Leads + Tab) | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
