STMicroelectronics-STGY40NC60VD - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	80 A
Current - Collector Pulsed (Icm):	-
Vce(on) (Max) @ Vge, Ic:	2.5V @ 15V, 40A
Power - Max:	260 W
Switching Energy:	330µJ (on), 720µJ (off)
Input Type:	Standard
Gate Charge:	214 nC
Td (on/off) @ 25°C:	43ns/140ns
Test Condition:	390V, 40A, 3.3Ohm, 15V
Reverse Recovery Time (trr):	44 ns
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	MAX247™

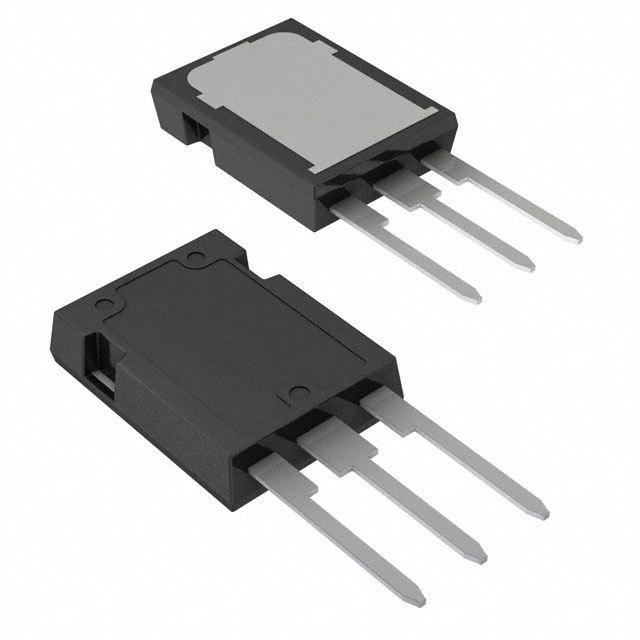

STMicroelectronics STGY40NC60VD
