STMicroelectronics-STGWA60V60DWFAG - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	80 A
Current - Collector Pulsed (Icm):	240 A
Vce(on) (Max) @ Vge, Ic:	2.3V @ 15V, 60A
Power - Max:	375 W
Switching Energy:	1.02mJ (on), 370µJ (off)
Input Type:	Standard
Gate Charge:	314 nC
Td (on/off) @ 25°C:	35ns/190ns
Test Condition:	400V, 60A, 4.7Ohm, 15V
Reverse Recovery Time (trr):	200 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole

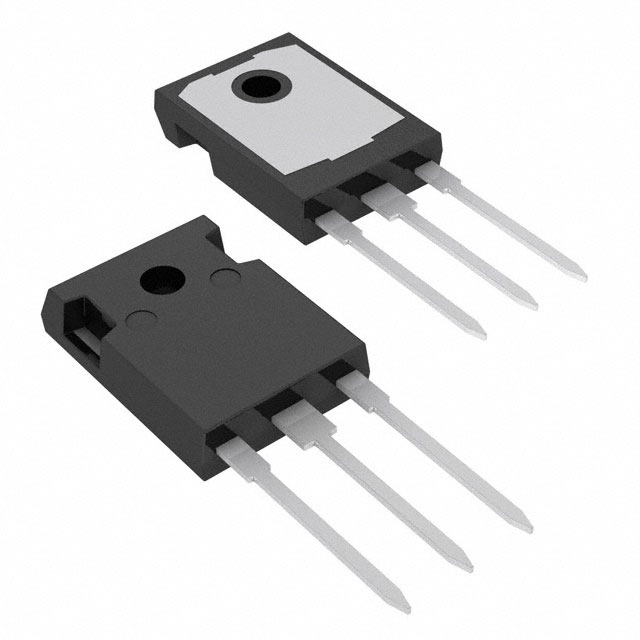

Package / Case:	TO-247-3
Supplier Device Package:	TO-247 Long Leads

STMicroelectronics STGWA60V60DWFAG
