Please send RFQ , we will respond immediately.

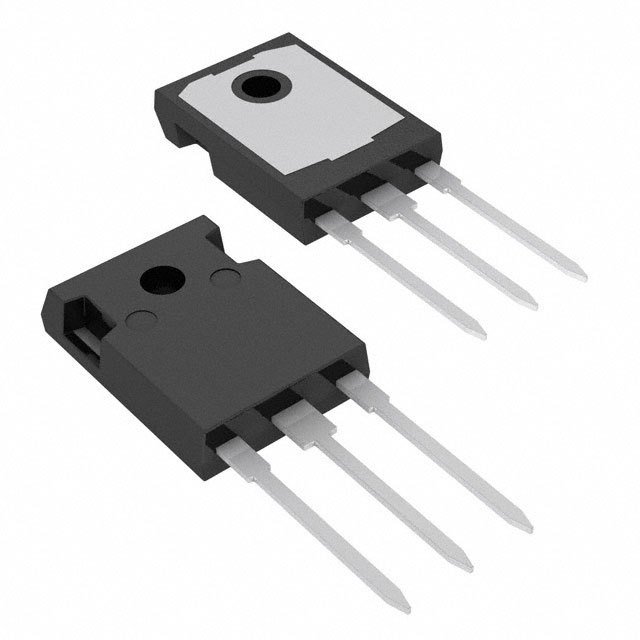

| Part Number | STGWA60V60DF | STGWT60V60DF | STGW60V60DF |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Obsolete | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 80 A | 80 A | 80 A |
| Current - Collector Pulsed (Icm) | 240 A | 240 A | 240 A |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 60A | 2.3V @ 15V, 60A | 2.3V @ 15V, 60A |
| Power - Max | 375 W | 375 W | 375 W |
| Switching Energy | 750µJ (on), 550µJ (off) | 750µJ (on), 550µJ (off) | 750µJ (on), 550µJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 334 nC | 334 nC | 334 nC |
| Td (on/off) @ 25°C | 60ns/208ns | 60ns/208ns | 60ns/208ns |
| Test Condition | 400V, 60A, 4.7Ohm, 15V | 400V, 60A, 4.7Ohm, 15V | 400V, 60A, 4.7Ohm, 15V |
| Reverse Recovery Time (trr) | 74 ns | 74 ns | 74 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-3P-3, SC-65-3 | TO-247-3 |
| Supplier Device Package | TO-247 Long Leads | - | TO-247-3 |
