| Part Number | STGWA40S120DF3 | STGW40S120DF3 | STGWA40M120DF3 |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 80 A | 80 A | 80 A |
| Current - Collector Pulsed (Icm) | 160 A | 160 A | 160 A |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 40A | 2.15V @ 15V, 40A | 2.3V @ 15V, 40A |
| Power - Max | 468 W | 468 W | 468 W |
| Switching Energy | 1.43mJ (on), 3.83mJ (off) | 1.43mJ (on), 3.83mJ (off) | 1.03mJ (on), 480µJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 129 nC | 129 nC | 125 nC |
| Td (on/off) @ 25°C | 35ns/148ns | 35ns/148ns | 35ns/140ns |
| Test Condition | 600V, 40A, 15Ohm, 15V | 600V, 40A, 15Ohm, 15V | 600V, 40A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 355 ns | 355 ns | 355 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |

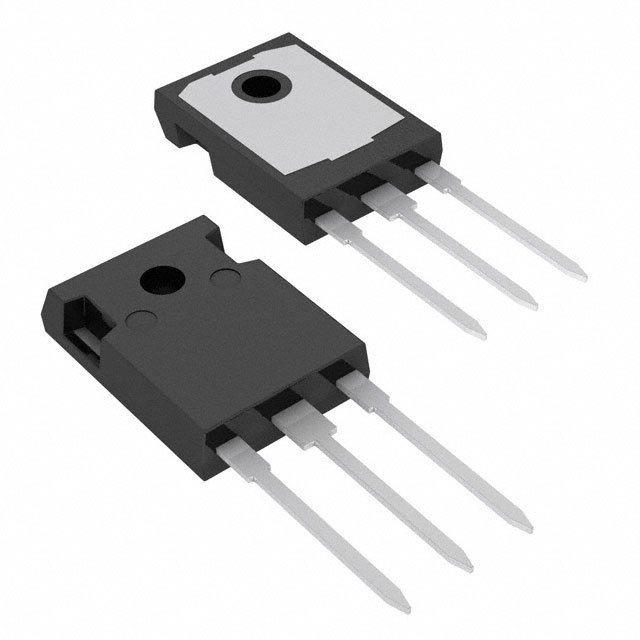

| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247-3 | TO-247-3 | TO-247 Long Leads |
