| Part Number | STGWA40H65DFB | STGWA40H65DFB2 | STGWT40H65DFB | STGWA40H65FB | STGWA60H65DFB | STGWA80H65DFB | STGW40H65DFB | STGWA30H65DFB |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Active | Last Time Buy |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop | Trench Field Stop | Trench Field Stop | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V | 650 V | 650 V | 650 V | 650 V | 650 V | 650 V | 650 V |
| Current - Collector (Ic) (Max) | 80 A | 72 A | 80 A | 80 A | 80 A | 120 A | 80 A | 60 A |
| Current - Collector Pulsed (Icm) | 160 A | 160 A | 160 A | 160 A | 240 A | 240 A | 160 A | 120 A |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 40A | 2V @ 15V, 40A | 2V @ 15V, 40A | 2V @ 15V, 40A | 2V @ 15V, 60A | 2V @ 15V, 80A | 2V @ 15V, 40A | 2V @ 15V, 30A |
| Power - Max | 283 W | 230 W | 283 W | 283 W | 375 W | 469 W | 283 W | 260 W |
| Switching Energy | 498µJ (on), 363µJ (off) | 765µJ (on), 410µJ (off) | 498µJ (on), 363µJ (off) | 498µJ (on), 363µJ (off) | 1.59mJ (on), 900µJ (off) | 2.1mJ (on), 1.5mJ (off) | 498µJ (on), 363µJ (off) | 382µJ (on), 293µJ (off) |
| Input Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Gate Charge | 210 nC | 153 nC | 210 nC | 210 nC | 306 nC | 414 nC | 210 nC | 149 nC |
| Td (on/off) @ 25°C | 40ns/142ns | 18ns/72ns | 40ns/142ns | 40ns/142ns | 66ns/210ns | 84ns/280ns | 40ns/142ns | 46ns/146ns |
| Test Condition | 400V, 40A, 5Ohm, 15V | 400V, 40A, 4.7Ohm, 15V | 400V, 40A, 5Ohm, 15V | 400V, 40A, 5Ohm, 15V | 400V, 60A, 10Ohm, 15V | 400V, 80A, 10Ohm, 15V | 400V, 40A, 5Ohm, 15V | 400V, 30A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 62 ns | 75 ns | 62 ns | - | 60 ns | 85 ns | 62 ns | 140 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

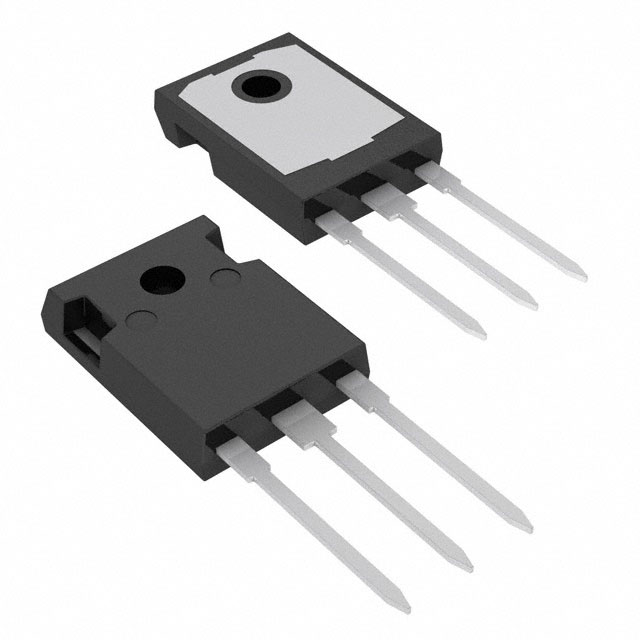

| Package / Case | TO-247-3 | TO-247-3 | TO-3P-3, SC-65-3 | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247 Long Leads | TO-247 Long Leads | TO-3P | TO-247 Long Leads | TO-247-3 | TO-247 Long Leads | TO-247 | TO-247 Long Leads |
