| Part Number | STGWA30H60DFB | STGWT30H60DFB | STGWA30H65DFB | STGW30H60DFB |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Last Time Buy | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 650 V | 600 V |
| Current - Collector (Ic) (Max) | 60 A | 60 A | 60 A | 60 A |
| Current - Collector Pulsed (Icm) | 120 A | 120 A | 120 A | 120 A |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 30A | 2V @ 15V, 30A | 2V @ 15V, 30A | 2V @ 15V, 30A |
| Power - Max | 260 W | 260 W | 260 W | 260 W |
| Switching Energy | 383µJ (on), 293µJ (off) | 383µJ (on), 293µJ (off) | 382µJ (on), 293µJ (off) | 383µJ (on), 293µJ (off) |
| Input Type | Standard | Standard | Standard | Standard |
| Gate Charge | 149 nC | 149 nC | 149 nC | 149 nC |
| Td (on/off) @ 25°C | 37ns/146ns | 37ns/146ns | 46ns/146ns | 37ns/146ns |
| Test Condition | 400V, 30A, 10Ohm, 15V | 400V, 30A, 10Ohm, 15V | 400V, 30A, 10Ohm, 15V | 400V, 30A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 53 ns | 53 ns | 140 ns | 53 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |

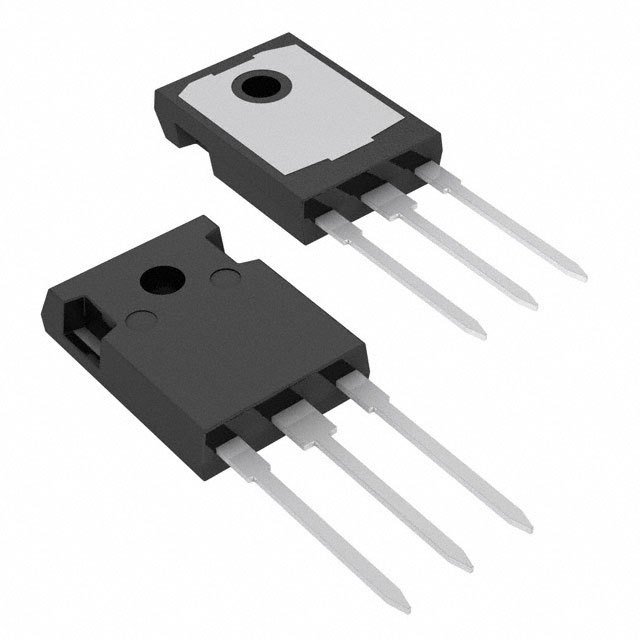

| Package / Case | TO-247-3 | TO-3P-3, SC-65-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247 Long Leads | TO-3P | TO-247 Long Leads | TO-247 |
