Please send RFQ , we will respond immediately.
| Part Number | STGWA20HP65FB2 | STGWA30HP65FB2 | STGWA40HP65FB2 | STGWA50HP65FB2 |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V | 650 V | 650 V | 650 V |
| Current - Collector (Ic) (Max) | 40 A | 50 A | 72 A | 86 A |
| Current - Collector Pulsed (Icm) | 60 A | 90 A | 120 A | 150 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 20A | 2.1V @ 15V, 30A | 2V @ 15V, 40A | 2V @ 15V, 50A |
| Power - Max | 147 W | 167 W | 227 W | 272 W |
| Switching Energy | 214µJ (off) | - | 410µJ (off) | 580µJ (off) |
| Input Type | Standard | Standard | Standard | Standard |
| Gate Charge | 56 nC | 90 nC | 153 nC | 151 nC |
| Td (on/off) @ 25°C | -/78.8ns | -/71ns | -/125ns | -/115ns |
| Test Condition | 400V, 20A, 10Ohm, 15V | 400V, 30A, 6.8Ohm, 15V | 400V, 40A, 4.7Ohm, 15V | 400V, 50A, 4.7Ohm, 15V |
| Reverse Recovery Time (trr) | 140 ns | 140 ns | 140 ns | 140 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |

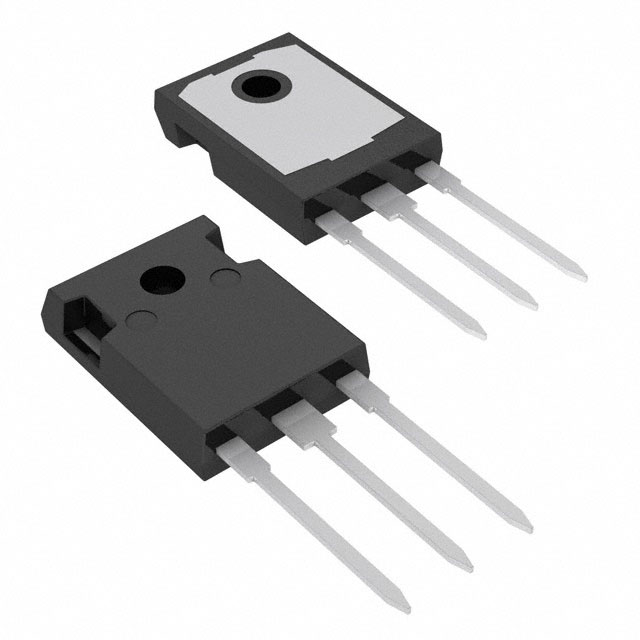

| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247 Long Leads | TO-247 Long Leads | TO-247 Long Leads | TO-247 Long Leads |
