| Part Number | STGWA15M120DF3 | STGWA25M120DF3 | STGWA15S120DF3 | STGW15M120DF3 |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 30 A | 50 A | 30 A | 30 A |
| Current - Collector Pulsed (Icm) | 60 A | 100 A | 60 A | 60 A |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 15A | 2.3V @ 15V, 25A | 2.05V @ 15V, 15A | 2.3V @ 15V, 15A |
| Power - Max | 259 W | 375 W | 259 W | 259 W |
| Switching Energy | 550µJ (on), 850µJ (off) | 850µJ (on), 1.3mJ (off) | 540µJ (on), 1.38mJ (off) | 550µJ (on), 850µJ (off) |
| Input Type | Standard | Standard | Standard | Standard |
| Gate Charge | 53 nC | 85 nC | 53 nC | 226 nC |
| Td (on/off) @ 25°C | 26ns/122ns | 28ns/150ns | 23ns/140ns | 26ns/122ns |
| Test Condition | 600V, 15A, 22Ohm, 15V | 600V, 25A, 15Ohm, 15V | 600V, 15A, 22Ohm, 15V | 600V, 15A, 22Ohm, 15V |
| Reverse Recovery Time (trr) | 270 ns | 265 ns | 270 ns | 270 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |

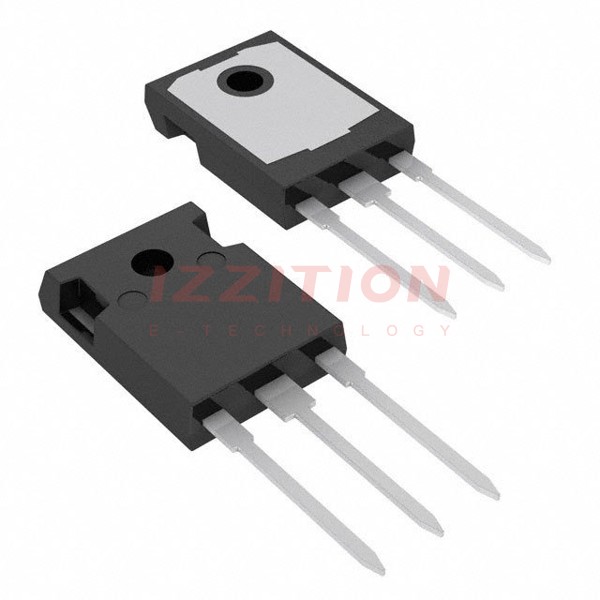

| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247 Long Leads | TO-247 Long Leads | TO-247-3 | TO-247 |
