STMicroelectronics-STGWA100H65DFB2 - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	650 V
Current - Collector (Ic) (Max):	145 A
Current - Collector Pulsed (Icm):	300 A
Vce(on) (Max) @ Vge, Ic:	2V @ 15V, 100A
Power - Max:	441 W
Switching Energy:	2.2mJ (on), 1.4mJ (off)
Input Type:	Standard
Gate Charge:	288 nC
Td (on/off) @ 25°C:	30ns/130ns
Test Condition:	400V, 100A, 2.2Ohm, 15V
Reverse Recovery Time (trr):	123 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247 Long Leads

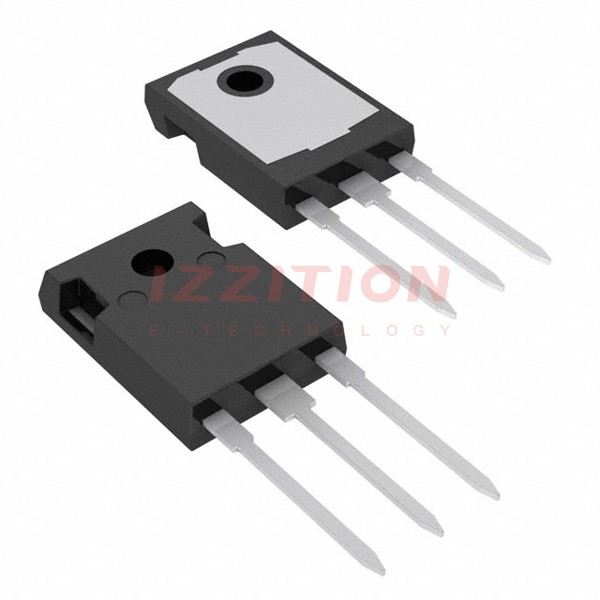

STMicroelectronics STGWA100H65DFB2
