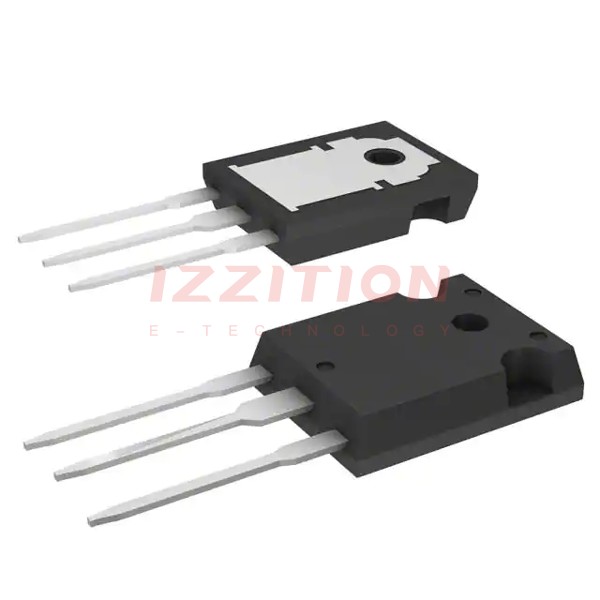

| Part Number | STGW8M120DF3 | STGWA8M120DF3 | STGP8M120DF3 |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 16 A | 16 A | 16 A |
| Current - Collector Pulsed (Icm) | 32 A | 32 A | 32 A |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 8A | 2.3V @ 15V, 8A | 2.3V @ 15V, 8A |
| Power - Max | 167 W | 167 W | - |
| Switching Energy | 390µJ (on), 370µJ (Off) | 390µJ (on), 370µJ (Off) | 390µJ (on), 370µJ (Off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 32 nC | 32 nC | 32 nC |
| Td (on/off) @ 25°C | 20ns/126ns | 20ns/126ns | 20ns/126ns |
| Test Condition | 600V, 8A, 33Ohm, 15V | 600V, 8A, 33Ohm, 15V | 600V, 8A, 33Ohm, 15V |
| Reverse Recovery Time (trr) | 103 ns | 103 ns | 103 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 | TO-220-3 |
| Supplier Device Package | TO-247-3 | TO-247 Long Leads | TO-220 |
