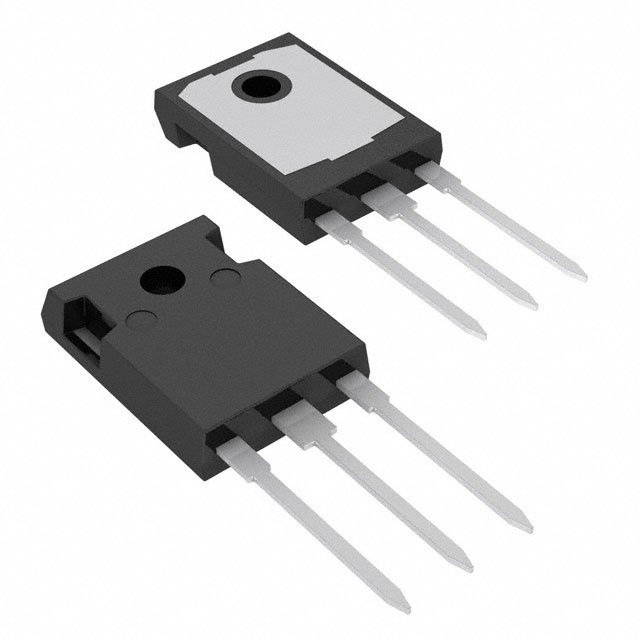

| Part Number | STGW35NC60WD | STGW45NC60WD | STGW30NC60WD |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Active |
| IGBT Type | - | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 70 A | 90 A | 60 A |
| Current - Collector Pulsed (Icm) | 150 A | 230 A | 150 A |
| Vce(on) (Max) @ Vge, Ic | 2.6V @ 15V, 20A | 2.6V @ 15V, 30A | 2.5V @ 15V, 20A |
| Power - Max | 260 W | 285 W | 200 W |
| Switching Energy | 305µJ (on), 181µJ (off) | 302µJ (on), 349µJ (off) | 305µJ (on), 181µJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 102 nC | 126 nC | 102 nC |
| Td (on/off) @ 25°C | 29.5ns/118ns | 33ns/168ns | 29.5ns/118ns |
| Test Condition | 390V, 20A, 10Ohm, 15V | 390V, 30A, 10Ohm, 15V | 390V, 20A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 40 ns | 45 ns | 40 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247-3 | TO-247 Long Leads | TO-247-3 |
