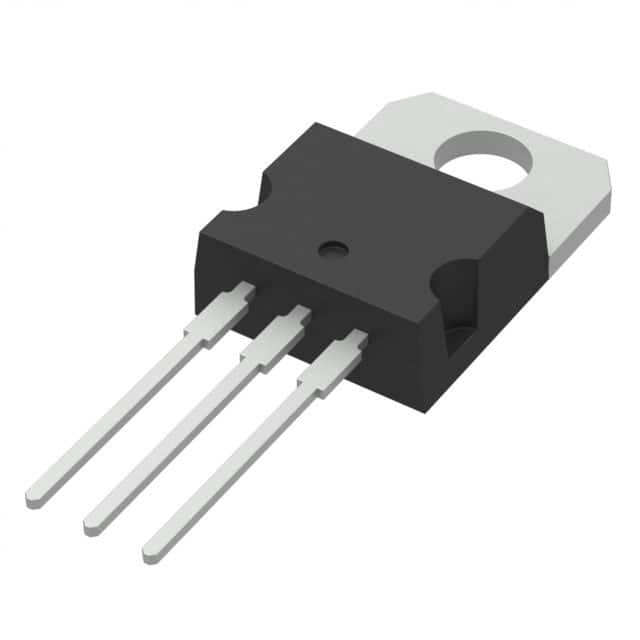

| Part Number | STGP4M65DF2 | STGP6M65DF2 | STGF4M65DF2 |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V | 650 V | 650 V |
| Current - Collector (Ic) (Max) | 8 A | 12 A | 8 A |
| Current - Collector Pulsed (Icm) | 16 A | 24 A | 16 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 4A | 2V @ 15V, 6A | 2.1V @ 15V, 4A |
| Power - Max | 68 W | 88 W | 23 W |
| Switching Energy | 40µJ (on), 136µJ (off) | 40µJ (on), 136µJ (off) | 40µJ (on), 136µJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 15.2 nC | 21.2 nC | 15.2 nC |
| Td (on/off) @ 25°C | 12ns/86ns | 12ns/86ns | 12ns/86ns |
| Test Condition | 400V, 4A, 47Ohm, 15V | 400V, 6A, 22Ohm, 15V | 400V, 4A, 47Ohm, 15V |
| Reverse Recovery Time (trr) | 133 ns | 140 ns | 133 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-3 | TO-220-3 | TO-220-3 Full Pack |
| Supplier Device Package | TO-220 | TO-220 | TO-220FP |
