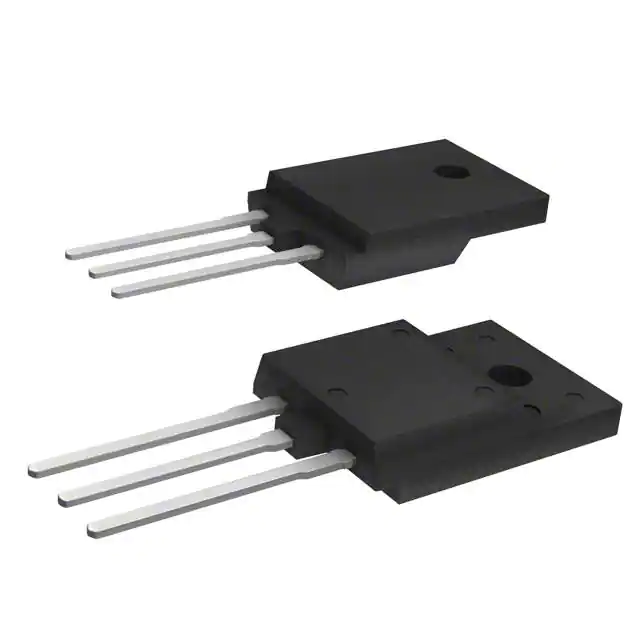

| Part Number | STGFW30V60DF | STGFW30V60F | STGFW40V60DF | STGFW20V60DF |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Active | Obsolete |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 60 A | 60 A | 80 A | 40 A |
| Current - Collector Pulsed (Icm) | 120 A | 120 A | 160 A | 80 A |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 30A | 2.3V @ 15V, 30A | 2.3V @ 15V, 40A | 2.2V @ 15V, 20A |
| Power - Max | 58 W | 58 W | 62.5 W | 52 W |
| Switching Energy | 383µJ (on), 233µJ (off) | 383µJ (on), 233µJ (off) | 456µJ (on), 411µJ (off) | 200µJ (on), 130µJ (off) |
| Input Type | Standard | Standard | Standard | Standard |
| Gate Charge | 163 nC | 163 nC | 226 nC | 116 nC |
| Td (on/off) @ 25°C | 45ns/189ns | 45ns/189ns | 52ns/208ns | 38ns/149ns |
| Test Condition | 400V, 30A, 10Ohm, 15V | 400V, 30A, 10Ohm, 15V | 400V, 40A, 10Ohm, 15V | 400V, 20A, 15V |
| Reverse Recovery Time (trr) | 53 ns | - | 41 ns | 40 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-3P-3 Full Pack | TO-3P-3 Full Pack | TO-3PFM, SC-93-3 | TO-3P-3 Full Pack |
| Supplier Device Package | TO-3PF | TO-3PF | TO-3PF-3 | TO-3PF |
