| Part Number | STGFL6NC60DI | STGPL6NC60DI | STGFL6NC60D |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Active | Obsolete |
| IGBT Type | - | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 7 A | 14 A | 7 A |
| Current - Collector Pulsed (Icm) | 18 A | 18 A | 25 A |
| Vce(on) (Max) @ Vge, Ic | 2.9V @ 15V, 3A | 2.9V @ 15V, 3A | 2.9V @ 15V, 3A |
| Power - Max | 22 W | 56 W | 22 W |
| Switching Energy | 32µJ (on), 24µJ (off) | 32µJ (on), 24µJ (off) | 46.5µJ (on), 23.5µJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 12 nC | 12 nC | 12 nC |
| Td (on/off) @ 25°C | 6.7ns/46ns | 6.7ns/46ns | 6.7ns/46ns |
| Test Condition | 390V, 3A, 10Ohm, 15V | 390V, 3A, 10Ohm, 15V | 390V, 3A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 23 ns | 23 ns | 30 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |

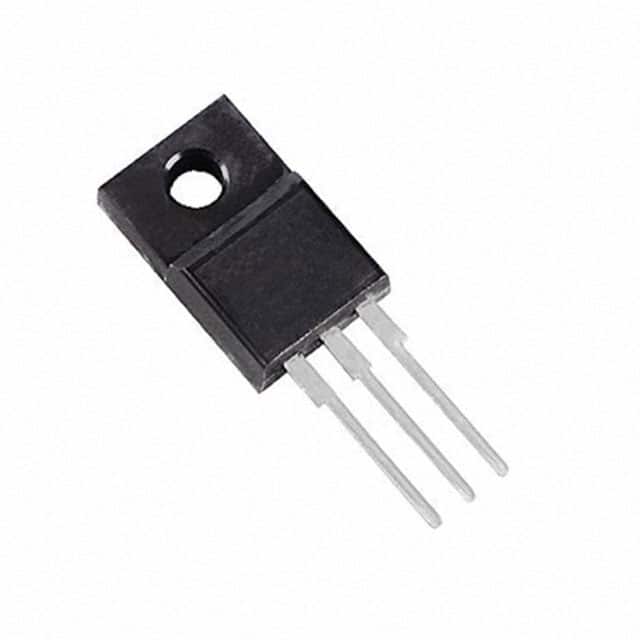

| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
| Supplier Device Package | TO-220FP | TO-220FP | TO-220FP |
