STMicroelectronics-STGF20H65DFB2 - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	650 V
Current - Collector (Ic) (Max):	40 A
Current - Collector Pulsed (Icm):	60 A
Vce(on) (Max) @ Vge, Ic:	2.1V @ 15V, 20A
Power - Max:	45 W
Switching Energy:	265µJ (on), 214µJ (off)
Input Type:	Standard
Gate Charge:	56 nC
Td (on/off) @ 25°C:	16ns/78.8ns
Test Condition:	400V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr):	215 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-220-3 Full Pack
Supplier Device Package:	TO-220FP

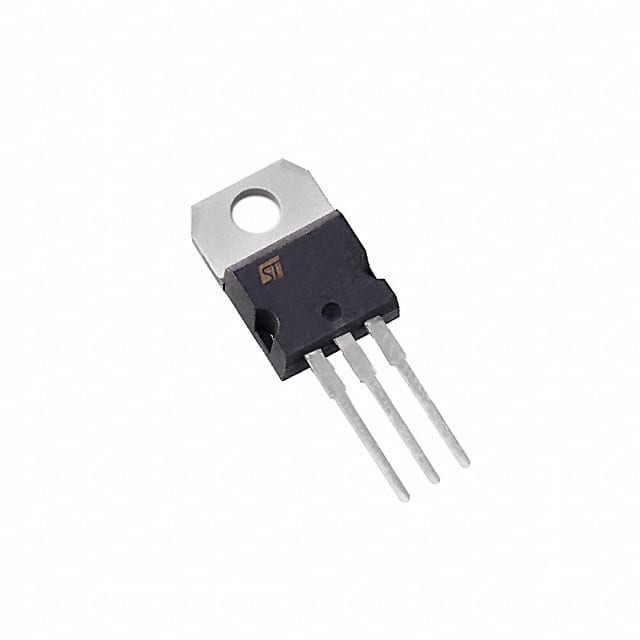

STMicroelectronics STGF20H65DFB2
