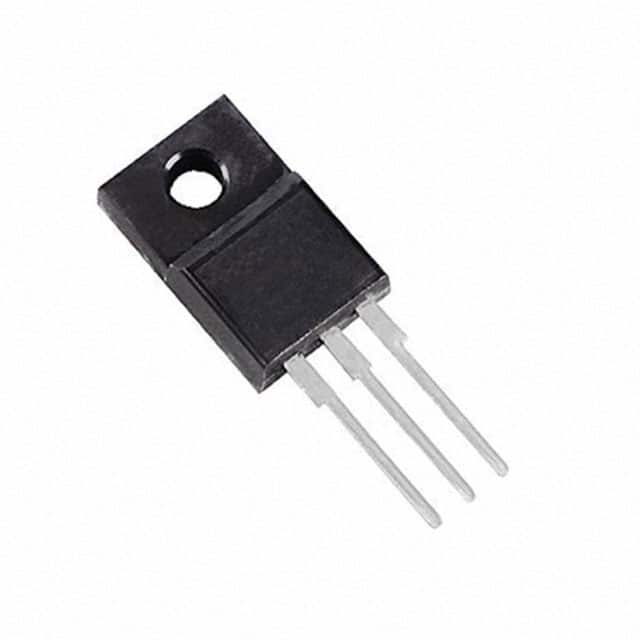

| Part Number | STGF15M65DF2 | STGP15M65DF2 | STGF10M65DF2 |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V | 650 V | 650 V |
| Current - Collector (Ic) (Max) | 30 A | 30 A | 20 A |
| Current - Collector Pulsed (Icm) | 60 A | 60 A | 40 A |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 15A | 2V @ 15V, 15A | 2V @ 15V, 10A |
| Power - Max | 31 W | 136 W | 30 W |
| Switching Energy | 90µJ (on), 450µJ (off) | 90µJ (on), 450µJ (off) | 120µJ (on), 270µJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 45 nC | 45 nC | 28 nC |
| Td (on/off) @ 25°C | 24ns/93ns | 24ns/93ns | 19ns/91ns |
| Test Condition | 400V, 15A, 12Ohm, 15V | 400V, 15A, 12Ohm, 15V | 400V, 10A, 22Ohm, 15V |
| Reverse Recovery Time (trr) | 142 ns | 142 ns | 96 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-3 Full Pack | TO-220-3 | TO-220-3 Full Pack |
| Supplier Device Package | TO-220FP | TO-220 | TO-220FP |
