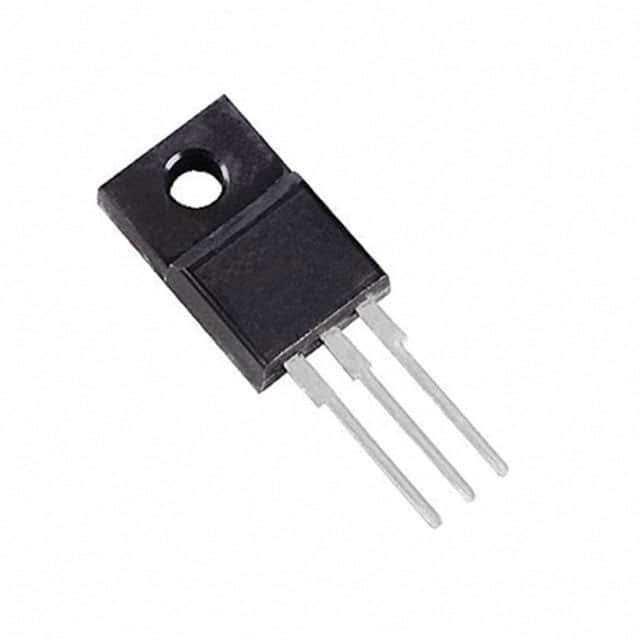

| Part Number | STGF10NC60SD | STGF17NC60SD | STGF10NB60SD | STGF10NC60HD | STGF10NC60KD |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Active | Obsolete | Active |
| IGBT Type | - | - | - | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 10 A | 17 A | 23 A | 9 A | 9 A |
| Current - Collector Pulsed (Icm) | 25 A | 80 A | 80 A | 30 A | 30 A |
| Vce(on) (Max) @ Vge, Ic | 1.65V @ 15V, 5A | 1.9V @ 15V, 12A | 1.75V @ 15V, 10A | 2.5V @ 15V, 5A | 2.5V @ 15V, 5A |
| Power - Max | 25 W | 32 W | 25 W | 24 W | 25 W |
| Switching Energy | 60µJ (on), 340µJ (off) | 135µJ (on), 815µJ (off) | 600µJ (on), 5mJ (off) | 31.8µJ (on), 95µJ (off) | 55µJ (on), 85µJ (off) |
| Input Type | Standard | Standard | Standard | Standard | Standard |
| Gate Charge | 18 nC | 54.5 nC | 33 nC | 19.2 nC | 19 nC |
| Td (on/off) @ 25°C | 19ns/160ns | 17.5ns/175ns | 700ns/1.2µs | 14.2ns/72ns | 17ns/72ns |
| Test Condition | 390V, 5A, 10Ohm, 15V | 480V, 12A, 10Ohm, 15V | 480V, 10A, 1kOhm, 15V | 390V, 5A, 10Ohm, 15V | 390V, 5A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 22 ns | 31 ns | 37 ns | 22 ns | 22 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
| Supplier Device Package | TO-220FP | TO-220FP | TO-220FP | TO-220FP | TO-220FP |
