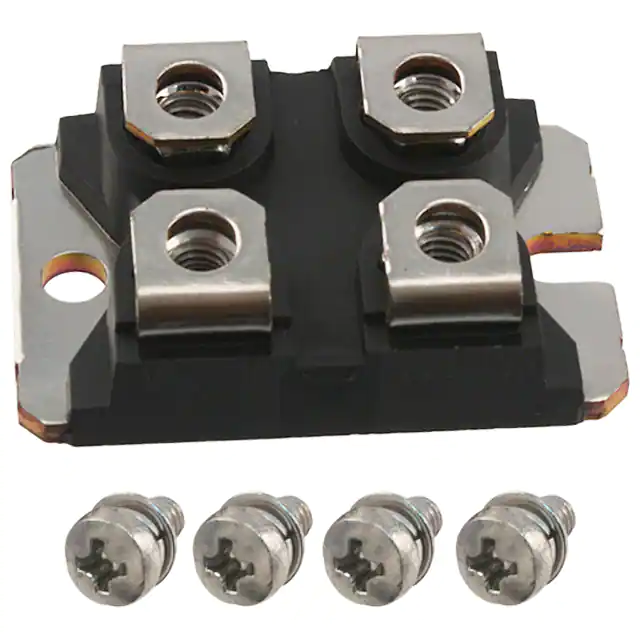

| Part Number | STGE50NC60VD | STGE50NC60WD |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete |
| IGBT Type | - | - |
| Configuration | Single | Single |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 90 A | 100 A |
| Power - Max | 260 W | 260 W |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 40A | 2.6V @ 15V, 40A |
| Current - Collector Cutoff (Max) | 150 µA | 500 µA |
| Input Capacitance (Cies) @ Vce | 4.55 nF @ 25 V | 4.7 nF @ 25 V |
| Input | Standard | Standard |
| NTC Thermistor | No | No |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC |
| Supplier Device Package | ISOTOP | ISOTOP |
