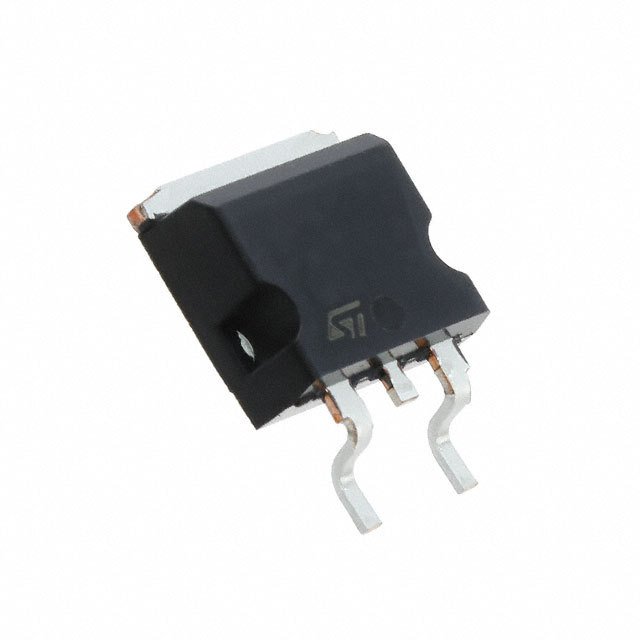

| Part Number | STGB30V60F | STGB40V60F | STGB20V60F | STGB30V60DF |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Active | Obsolete | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 60 A | 80 A | 40 A | 60 A |
| Current - Collector Pulsed (Icm) | 120 A | 160 A | 80 A | 120 A |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 30A | 2.3V @ 15V, 40A | 2.2V @ 15V, 20A | 2.3V @ 15V, 30A |
| Power - Max | 260 W | 283 W | 167 W | 258 W |
| Switching Energy | 383µJ (on), 233µJ (off) | 456µJ (on), 411µJ (off) | 200µJ (on), 130µJ (off) | 383µJ (on), 233µJ (off) |
| Input Type | Standard | Standard | Standard | Standard |
| Gate Charge | 163 nC | 226 nC | 116 nC | 163 nC |
| Td (on/off) @ 25°C | 45ns/189ns | 52ns/208ns | 38ns/149ns | 45ns/189ns |
| Test Condition | 400V, 30A, 10Ohm, 15V | 400V, 40A, 10Ohm, 15V | 400V, 20A, 15V | 400V, 30A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | - | - | - | 53 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D²PAK (TO-263) | D²PAK (TO-263) | D²PAK (TO-263) | D2PAK |
