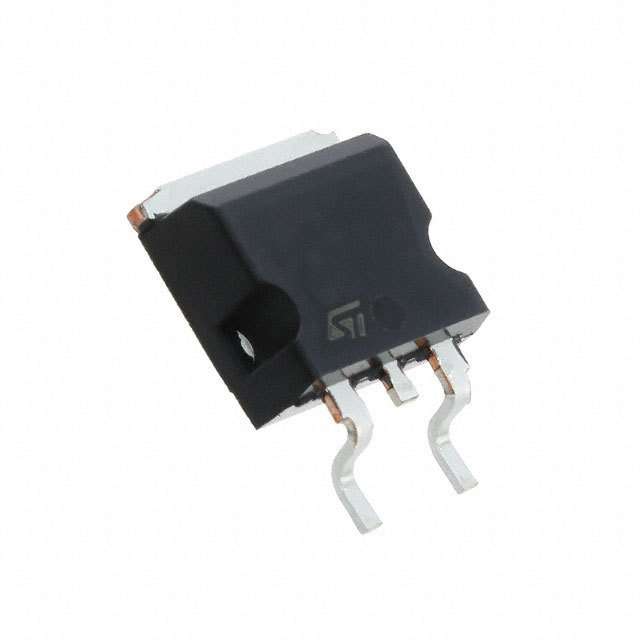

| Part Number | STGB30M65DF2 | STGF30M65DF2 | STGB10M65DF2 | STGB20M65DF2 |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V | 650 V | 650 V | 650 V |
| Current - Collector (Ic) (Max) | 60 A | 60 A | 20 A | 40 A |
| Current - Collector Pulsed (Icm) | 120 A | 120 A | 40 A | 80 A |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 30A | 2V @ 15V, 30A | 2V @ 15V, 10A | 2V @ 15V, 20A |
| Power - Max | 258 W | 38 W | 115 W | 166 W |
| Switching Energy | 300µJ (on), 960µJ (off) | 300µJ (on), 960µJ (off) | 120µJ (on), 270µJ (off) | 140µJ (on), 560µJ (off) |
| Input Type | Standard | Standard | Standard | Standard |
| Gate Charge | 80 nC | 80 nC | 28 nC | 63 nC |
| Td (on/off) @ 25°C | 31.6ns/115ns | 31.6ns/115ns | 19ns/91ns | 26ns/108ns |
| Test Condition | 400V, 30A, 10Ohm, 15V | 400V, 30A, 10Ohm, 15V | 400V, 10A, 22Ohm, 15V | 400V, 20A, 12Ohm, 15V |
| Reverse Recovery Time (trr) | 140 ns | 140 ns | 96 ns | 166 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Through Hole | Surface Mount | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-220-3 Full Pack | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D²PAK (TO-263) | TO-220FP | D²PAK (TO-263) | D2PAK |
