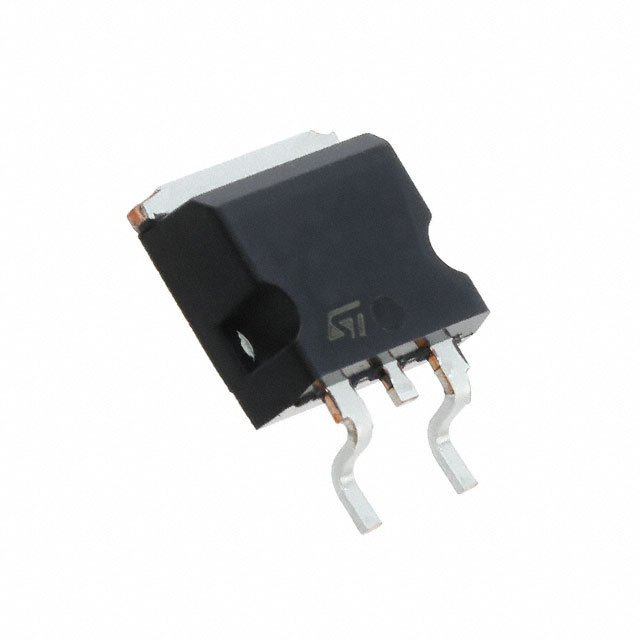

| Part Number | STGB30H60DFB | STGB30H60DLFB | STGB30H60DF |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Last Time Buy | Last Time Buy | Obsolete |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 60 A | 60 A | 60 A |
| Current - Collector Pulsed (Icm) | 120 A | 120 A | 120 A |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 30A | 2V @ 15V, 30A | 2.4V @ 15V, 30A |
| Power - Max | 260 W | 260 W | 260 W |
| Switching Energy | 383µJ (on), 293µJ (off) | 393µJ (off) | 350µJ (on), 400µJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 149 nC | 149 nC | 105 nC |
| Td (on/off) @ 25°C | 37ns/146ns | -/146ns | 50ns/160ns |
| Test Condition | 400V, 30A, 10Ohm, 15V | 400V, 30A, 10Ohm, 15V | 400V, 30A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 53 ns | - | 110 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D²PAK (TO-263) | D²PAK (TO-263) | D2PAK |
