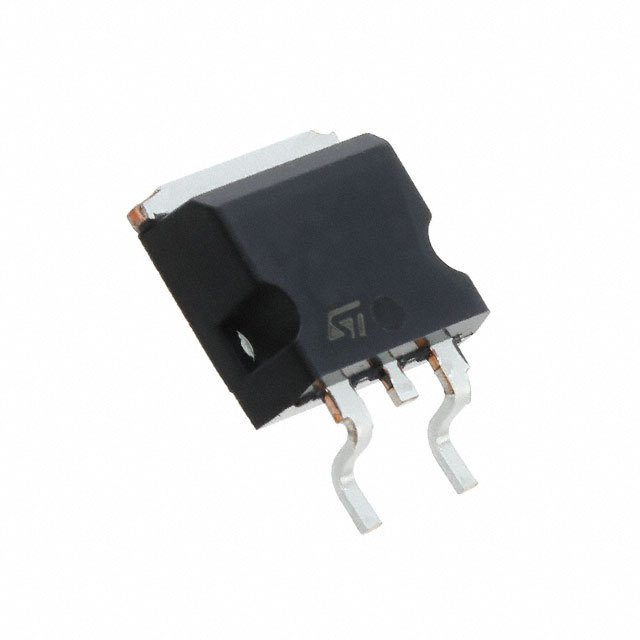

| Part Number | STGB10H60DF | STGB15H60DF | STGB20H60DF | STGB30H60DF |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Obsolete |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 20 A | 30 A | 40 A | 60 A |
| Current - Collector Pulsed (Icm) | 40 A | 60 A | 80 A | 120 A |
| Vce(on) (Max) @ Vge, Ic | 1.95V @ 15V, 10A | 2V @ 15V, 15A | 2V @ 15V, 20A | 2.4V @ 15V, 30A |
| Power - Max | 115 W | 115 W | 167 W | 260 W |
| Switching Energy | 83µJ (on), 140µJ (off) | 136µJ (on), 207µJ (off) | 209µJ (on), 261µJ (off) | 350µJ (on), 400µJ (off) |
| Input Type | Standard | Standard | Standard | Standard |
| Gate Charge | 57 nC | 81 nC | 115 nC | 105 nC |
| Td (on/off) @ 25°C | 19.5ns/103ns | 24.5ns/118ns | 42.5ns/177ns | 50ns/160ns |
| Test Condition | 400V, 10A, 10Ohm, 15V | 400V, 15A, 10Ohm, 15V | 400V, 20A, 10Ohm, 15V | 400V, 30A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 107 ns | 103 ns | 90 ns | 110 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D²PAK (TO-263) | D²PAK (TO-263) | D2PAK | D2PAK |
