STMicroelectronics-STGAP2HSMTR - Isolators - Gate Drivers Product Specifications and Latest Quotes

Technology:	Capacitive Coupling
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	100V/ns
Propagation Delay tpLH / tpHL (Max):	90ns, 90ns
Pulse Width Distortion (Max):	20ns
Rise / Fall Time (Typ):	30ns, 30ns
Current - Output High, Low:	4A, 4A
Current - Peak Output:	4A
Voltage - Forward (Vf) (Typ):	-
Current - DC Forward (If) (Max):	-
Voltage - Output Supply:	3V ~ 5.5V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	8-SO
Approval Agency:	UL

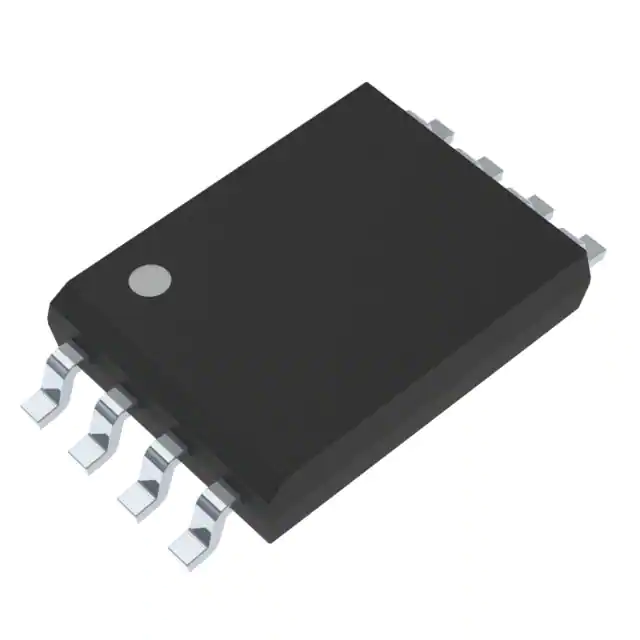

STMicroelectronics STGAP2HSMTR
