| Part Number | STG5683QTR | STG5682QTR |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Active |
| Switch Circuit | SPDT | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 |
| Number of Circuits | 2 | 2 |
| On-State Resistance (Max) | 550mOhm | 550mOhm |
| Channel-to-Channel Matching (ΔRon) | 15mOhm | 15mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.5V | 1.65V ~ 4.5V |
| Voltage - Supply, Dual (V±) | - | - |
| Switch Time (Ton, Toff) (Max) | 80ns, 50ns | 80ns, 50ns |
| -3db Bandwidth | 33MHz | 33MHz |
| Charge Injection | 46pC | 126pC |
| Channel Capacitance (CS(off), CD(off)) | 6pF | 6pF |
| Current - Leakage (IS(off)) (Max) | - | 100nA |
| Crosstalk | -60dB @ 100kHz | -60dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

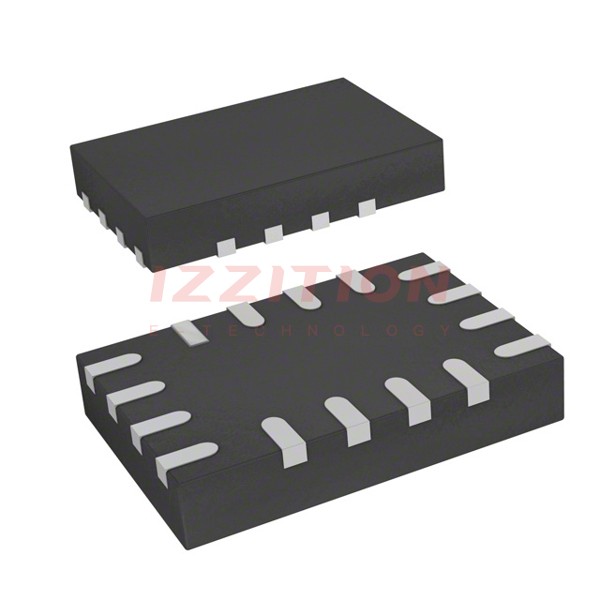

| Package / Case | 16-UFQFN | 16-UFQFN |
| Supplier Device Package | 16-QFN (2.6x1.8) | 16-QFN (2.6x1.8) |
