| Part Number | STG4158BJR | STG4159BJR |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Obsolete |
| Switch Circuit | SPDT | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 |
| Number of Circuits | 1 | 1 |
| On-State Resistance (Max) | 600mOhm (Typ) | 300mOhm |
| Channel-to-Channel Matching (ΔRon) | 10mOhm | 3mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.5V | 1.65V ~ 4.8V |
| Voltage - Supply, Dual (V±) | - | - |
| Switch Time (Ton, Toff) (Max) | 28ns, 13ns | 38ns, 17ns |
| -3db Bandwidth | 40MHz | 28MHz |
| Charge Injection | 230pC | 140pC |
| Channel Capacitance (CS(off), CD(off)) | 30pF | 30pF |
| Current - Leakage (IS(off)) (Max) | 30nA | 30nA |
| Crosstalk | -61dB @ 1MHz | -69dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

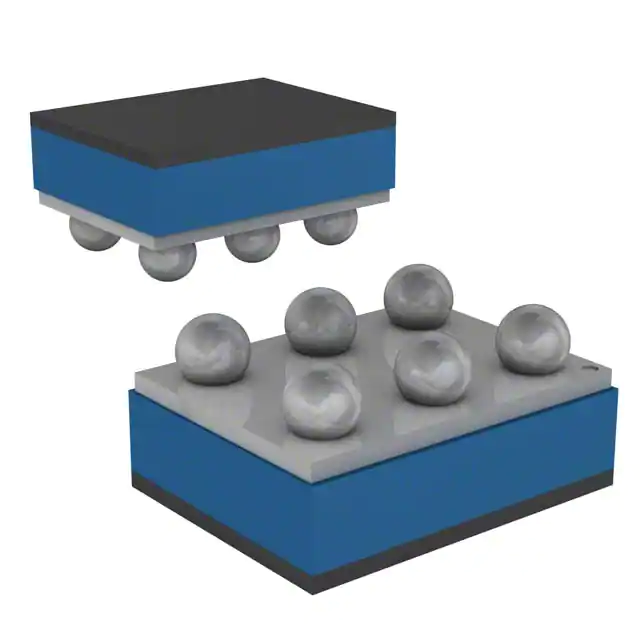

| Package / Case | 6-WFBGA, FCBGA | 7-WFBGA, FCBGA |
| Supplier Device Package | 6-FlipChip (1.23x0.83) | 7-FlipChip |
