STMicroelectronics-STG3P2M10N60B - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

IGBT Type:	-
Configuration:	Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	19 A
Power - Max:	56 W
Vce(on) (Max) @ Vge, Ic:	2.5V @ 15V, 7A
Current - Collector Cutoff (Max):	10 µA
Input Capacitance (Cies) @ Vce:	720 pF @ 25 V
Input:	Single Phase Bridge Rectifier
NTC Thermistor:	No
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	SEMITOP®2
Supplier Device Package:	SEMITOP®2

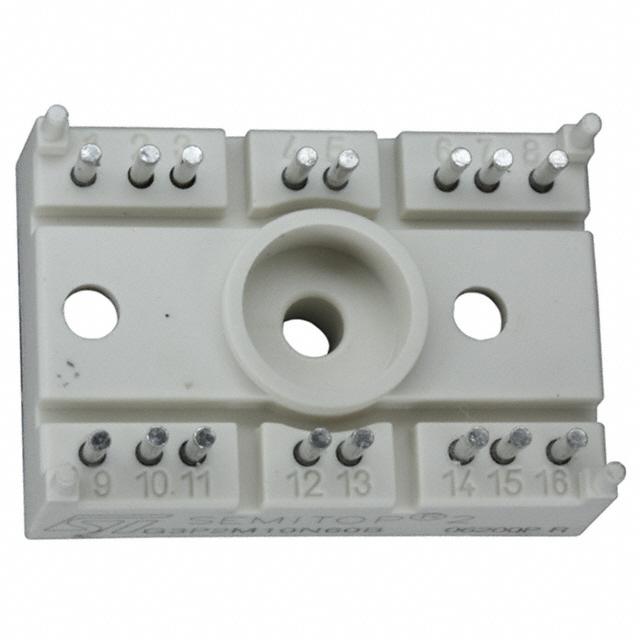

STMicroelectronics STG3P2M10N60B
