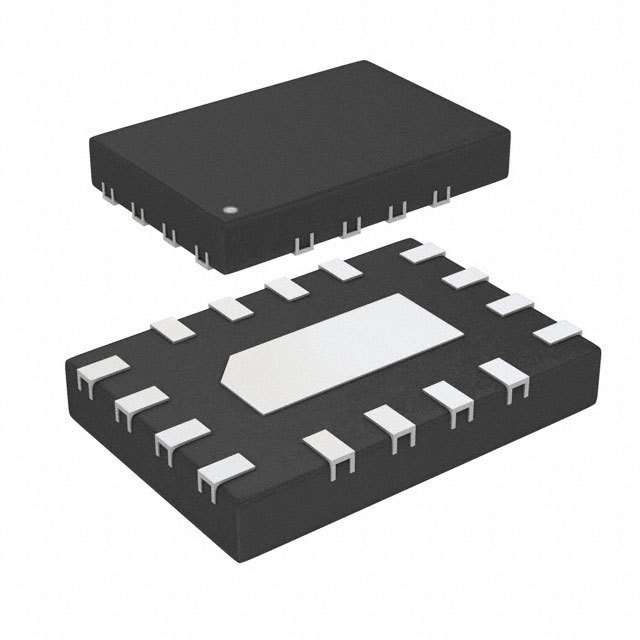

| Part Number | STG3693QTR | STG3699QTR | STG3690QTR | STG3692QTR |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Obsolete | Obsolete | Active |
| Switch Circuit | SPDT | SPDT | SPDT | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 2:1 | 2:1 |
| Number of Circuits | 4 | 4 | 4 | 4 |
| On-State Resistance (Max) | 5.2Ohm | 500mOhm | 1.5Ohm | 5.2Ohm |
| Channel-to-Channel Matching (ΔRon) | 300mOhm | 60mOhm | 60mOhm | 300mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V | 1.65V ~ 4.3V | 1.65V ~ 3.6V | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - | - | - | - |
| Switch Time (Ton, Toff) (Max) | 15ns, 5ns | 50ns, 30ns | 50ns, 30ns | 15ns, 13ns |
| -3db Bandwidth | 800MHz | 50MHz | 50MHz | 800MHz |
| Charge Injection | 5pC | 35pC | 35pC | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF | 5pF | 5pF | 5pF |
| Current - Leakage (IS(off)) (Max) | 20nA | 10nA | 10nA | 20nA |
| Crosstalk | -78dB @ 1MHz | -54dB @ 100kHz | -54dB @ 100kHz | -78dB @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-UFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-UFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (2.6x1.8) | 16-QFN (3x3) | 16-QFN (3x3) | 16-QFN (2.6x1.8) |
