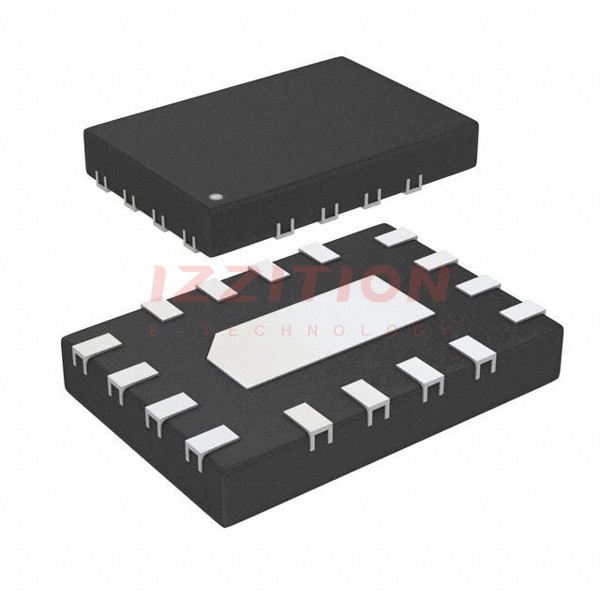

| Part Number | STG3482QTR | STG3682QTR |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active |
| Switch Circuit | SP4T | SPDT |
| Multiplexer/Demultiplexer Circuit | 4:1 | 2:1 |
| Number of Circuits | 2 | 2 |
| On-State Resistance (Max) | 5.2Ohm | 5.2Ohm |
| Channel-to-Channel Matching (ΔRon) | 300mOhm | 300mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±) | 1.65V ~ 4.3V | - |
| Switch Time (Ton, Toff) (Max) | 18ns, 15ns | 15ns, 13ns |
| -3db Bandwidth | 300MHz | 800MHz |
| Charge Injection | 11pC | 5pC |
| Channel Capacitance (CS(off), CD(off)) | - | 5pF |
| Current - Leakage (IS(off)) (Max) | 20nA | 20nA |
| Crosstalk | -77dB @ 1MHz | -78dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 16-UFQFN Exposed Pad | 10-UFQFN |
| Supplier Device Package | 16-QFN (2.6x1.8) | 10-QFN (1.8x1.4) |
