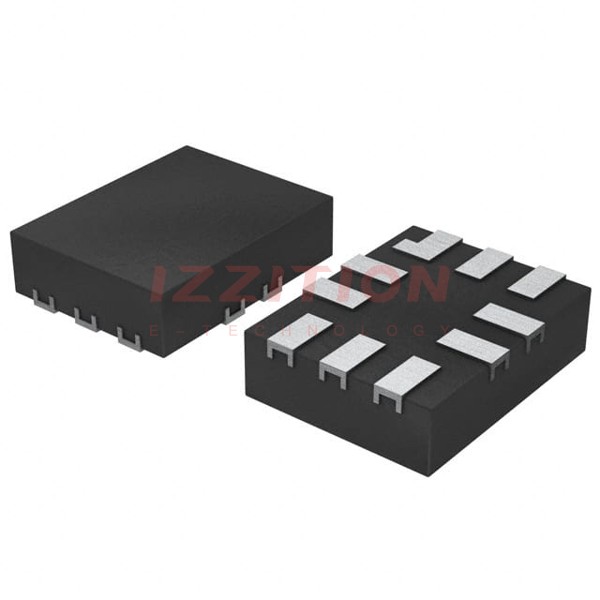

STG3220QTR Image
×
Favorite
Compare
Add to RFQ
Share:
STMicroelectronics STG3220QTR
Manufacturer No:
STG3220QTR
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Datasheet:
STG3220QTR Datasheet
ECAD Model:
-
Description:
IC SWITCH DUAL SPDT 10QFN
Delivery:
Payment:
Product Attributes
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
2
On-State Resistance (Max):
5.4Ohm
Channel-to-Channel Matching (ΔRon):
100mOhm
Voltage - Supply, Single (V+):
1.65V ~ 4.3V
Voltage - Supply, Dual (V±):
-
Switch Time (Ton, Toff) (Max):
15ns, 13ns
-3db Bandwidth:
800MHz
Charge Injection:
6.4pC
Channel Capacitance (CS(off), CD(off)):
2pF
Current - Leakage (IS(off)) (Max):
20nA
Crosstalk:
-78dB @ 1MHz
Operating Temperature:
-40°C ~ 85°C (TA)
Mounting Type:
Surface Mount
Package / Case:
10-UFQFN
Supplier Device Package:
10-QFN (1.8x1.4)
0
Remaining
View Similar
In Stock
UnitPrice:
-
Quantity:
151
