STMicroelectronics-STFW2N105K5 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	1050 V
Current - Continuous Drain (Id) @ 25°C:	2A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	8Ohm @ 750mA, 10V
Vgs(th) (Max) @ Id:	5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs:	10 nC @ 10 V
Vgs (Max):	30V
Input Capacitance (Ciss) (Max) @ Vds:	115 pF @ 100 V
FET Feature:	-
Power Dissipation (Max):	30W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-3PF
Package / Case:	TO-3P-3 Full Pack

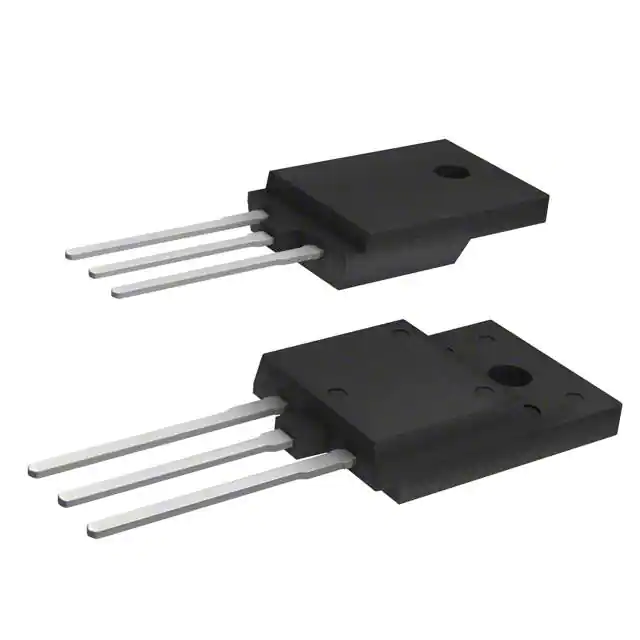

STMicroelectronics STFW2N105K5
