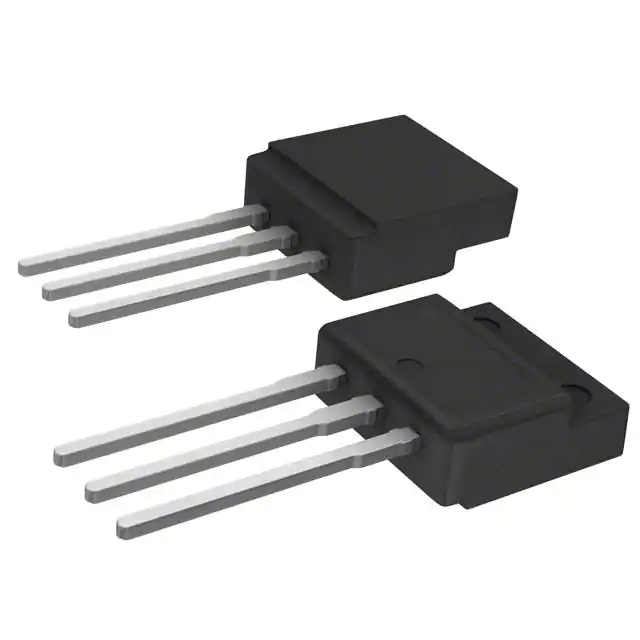

| Part Number | STFI4N62K3 | STFI6N62K3 | STF4N62K3 |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 620 V | 620 V | 620 V |
| Current - Continuous Drain (Id) @ 25°C | 3.8A (Tc) | 5.5A (Tc) | 3.8A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 2Ohm @ 1.9A, 10V | 1.2Ohm @ 2.8A, 10V | 2Ohm @ 1.9A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 50µA | 4.5V @ 50µA | 4.5V @ 50µA |
| Gate Charge (Qg) (Max) @ Vgs | 22 nC @ 10 V | 34 nC @ 10 V | 22 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 550 pF @ 50 V | 875 pF @ 50 V | 550 pF @ 50 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 25W (Tc) | 30W (Tc) | 25W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | I2PAKFP (TO-281) | I2PAKFP (TO-281) | TO-220FP |
| Package / Case | TO-262-3 Full Pack, I²Pak | TO-262-3 Full Pack, I²Pak | TO-220-3 Full Pack |
