STMicroelectronics-STFI15N95K5 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	950 V
Current - Continuous Drain (Id) @ 25°C:	7.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	500mOhm @ 5.5A, 10V
Vgs(th) (Max) @ Id:	5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs:	30 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	855 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	30W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	I2PAKFP (TO-281)
Package / Case:	TO-262-3 Full Pack, I²Pak

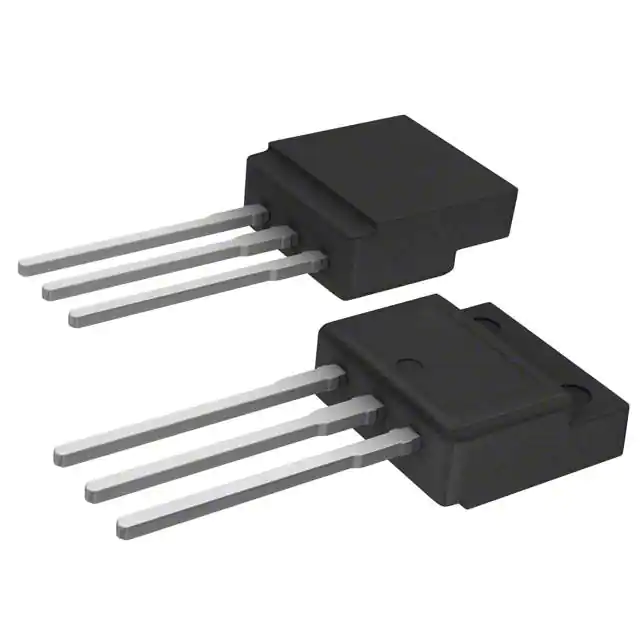

STMicroelectronics STFI15N95K5
