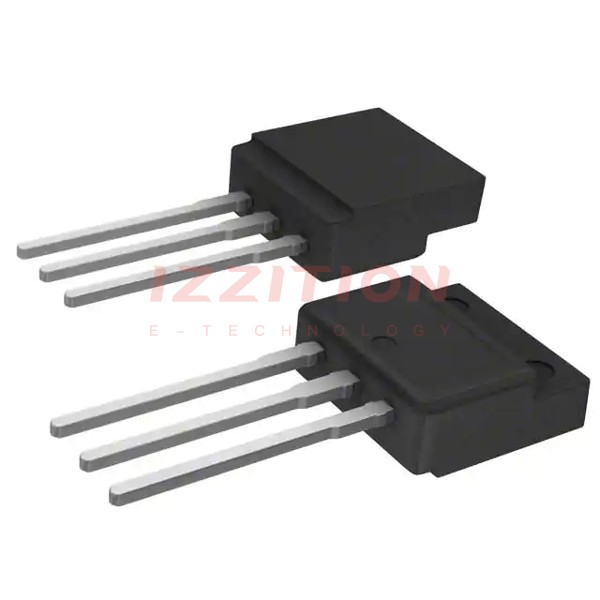

| Part Number | STFI10NK60Z | STFI13NK60Z | STFU10NK60Z |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Tc) | 13A (Tc) | 10A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 750mOhm @ 4.5A, 10V | 550mOhm @ 4.5A, 10V | 750mOhm @ 4.5A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA | 4.5V @ 100µA | 4.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 70 nC @ 10 V | 92 nC @ 10 V | 48 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1370 pF @ 25 V | 2030 pF @ 25 V | 1370 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 35W (Tc) | 35W (Tc) | 35W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | I2PAKFP (TO-281) | I2PAKFP (TO-281) | TO-220FP |
| Package / Case | TO-262-3 Full Pack, I²Pak | TO-262-3 Full Pack, I²Pak | TO-220-3 Full Pack |
