STMicroelectronics-STF817A - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	STF817A	STX817A	STN817A
Manufacturer	STMicroelectronics	STMicroelectronics	STMicroelectronics
Product Status	Obsolete	Obsolete	Obsolete
Transistor Type	PNP	PNP	PNP
Current - Collector (Ic) (Max)	1.5 A	1.5 A	1.5 A
Voltage - Collector Emitter Breakdown (Max)	80 V	80 V	80 V
Vce Saturation (Max) @ Ib, Ic	500mV @ 100mA, 1A	500mV @ 100mA, 1A	500mV @ 100mA, 1A
Current - Collector Cutoff (Max)	1mA	1mA	1mA
DC Current Gain (hFE) (Min) @ Ic, Vce	30 @ 1A, 2V	25 @ 1A, 2V	30 @ 1A, 2V
Power - Max	1.4 W	900 mW	1.6 W
Frequency - Transition	50MHz	50MHz	50MHz
Operating Temperature	-65°C ~ 150°C (TJ)	150°C (TJ)	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Through Hole	Surface Mount
Package / Case	TO-243AA	TO-226-3, TO-92-3 (TO-226AA)	TO-261-4, TO-261AA
Supplier Device Package	SOT-89-3	TO-92-3	SOT-223

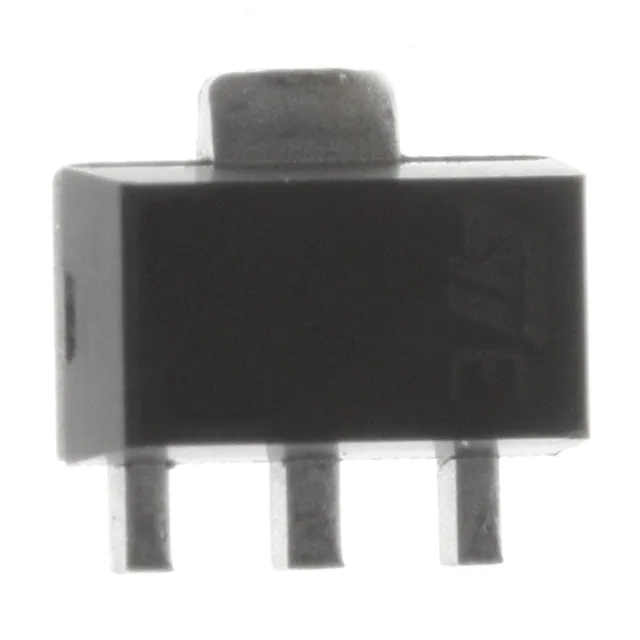

STMicroelectronics STF817A

Transistor Type:	PNP
Current - Collector (Ic) (Max):	1.5 A
Voltage - Collector Emitter Breakdown (Max):	80 V
Vce Saturation (Max) @ Ib, Ic:	500mV @ 100mA, 1A
Current - Collector Cutoff (Max):	1mA
DC Current Gain (hFE) (Min) @ Ic, Vce:	30 @ 1A, 2V
Power - Max:	1.4 W
Frequency - Transition:	50MHz
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-243AA
Supplier Device Package:	SOT-89-3
