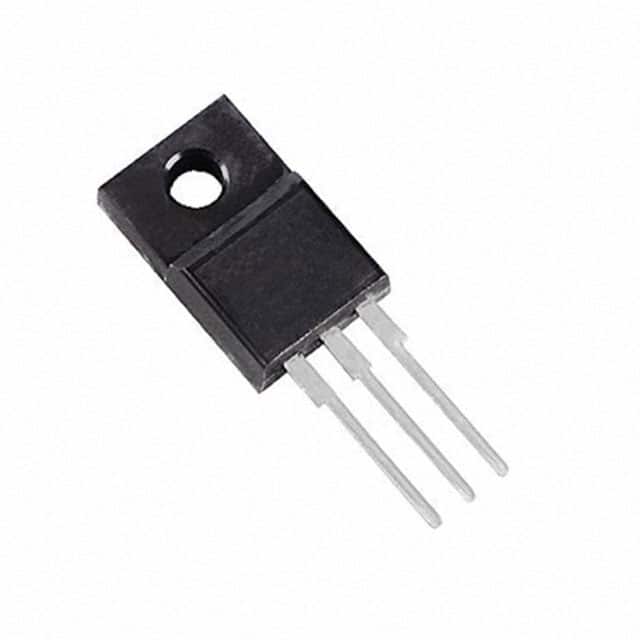

| Part Number | STF6N65M2 | STF9N65M2 | STF7N65M2 | STF6N60M2 |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Obsolete | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V | 650 V | 650 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 4A (Tc) | 5A (Tc) | 5A (Tc) | 4.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 1.35Ohm @ 2A, 10V | 900mOhm @ 2.5A, 10V | 1.15Ohm @ 2.5A, 10V | 1.2Ohm @ 2.25A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 9.8 nC @ 10 V | 10 nC @ 10 V | 9 nC @ 10 V | 8 nC @ 10 V |
| Vgs (Max) | ±25V | ±25V | ±25V | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 226 pF @ 100 V | 315 pF @ 100 V | 270 pF @ 100 V | 232 pF @ 100 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 20W (Tc) | 20W (Tc) | 20W (Tc) | 20W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220FP | TO-220FP | TO-220FP | TO-220FP |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
