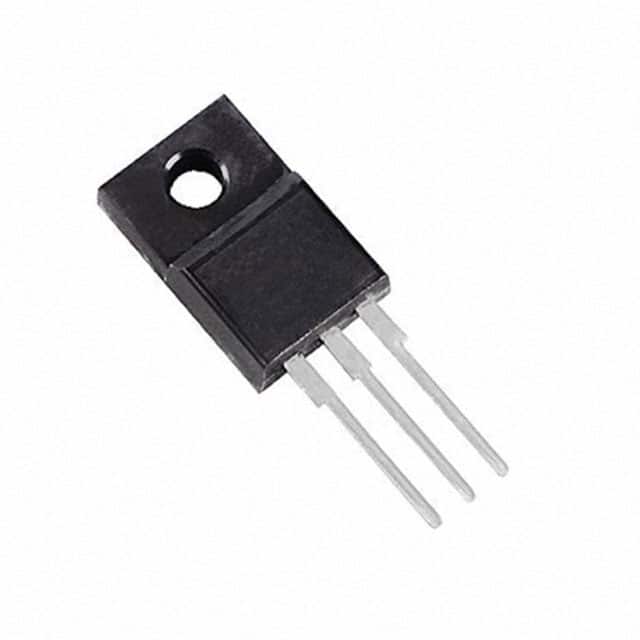

| Part Number | STF5N95K3 | STFI5N95K3 | STF5N95K5 | STF7N95K3 |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Obsolete | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 950 V | 950 V | 950 V | 950 V |
| Current - Continuous Drain (Id) @ 25°C | 4A (Tc) | 4A (Tc) | 3.5A (Tc) | 7.2A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 3.5Ohm @ 2A, 10V | 3.5Ohm @ 2A, 10V | 2.5Ohm @ 1.5A, 10V | 1.35Ohm @ 3.6A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 100µA | 5V @ 100µA | 5V @ 100µA | 5V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 19 nC @ 10 V | 19 nC @ 10 V | 12.5 nC @ 10 V | 33 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 460 pF @ 25 V | 460 pF @ 25 V | 220 pF @ 100 V | 1031 pF @ 100 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 25W (Tc) | 25W (Tc) | 25W (Tc) | 35W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220FP | I2PAKFP (TO-281) | TO-220FP | TO-220FP |
| Package / Case | TO-220-3 Full Pack | TO-262-3 Full Pack, I²Pak | TO-220-3 Full Pack | TO-220-3 Full Pack |
