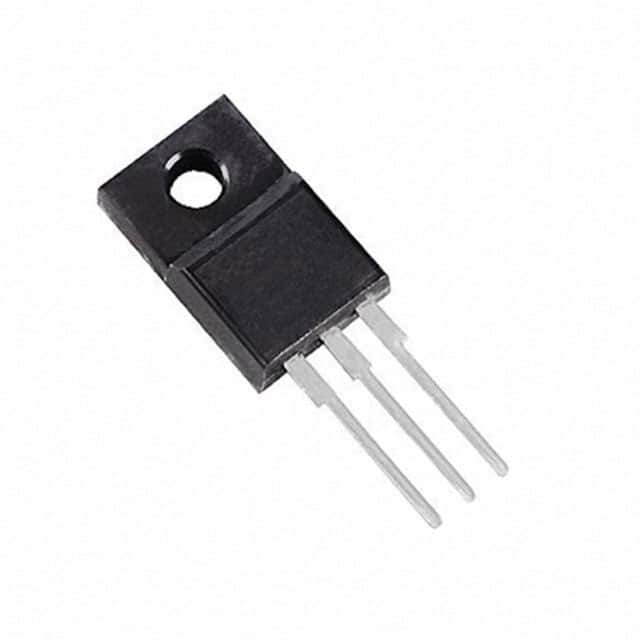

| Part Number | STF33N60M6 | STF36N60M6 | STF33N60DM6 | STF33N60M2 |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 25A (Tc) | 30A (Tc) | 25A (Tc) | 26A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 125mOhm @ 12.5A, 10V | 99mOhm @ 15A, 10V | 128mOhm @ 12.5A, 10V | 125mOhm @ 13A, 10V |
| Vgs(th) (Max) @ Id | 4.75V @ 250µA | 4.75V @ 250µA | 4.75V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 33.4 nC @ 10 V | 44.3 nC @ 10 V | 35 nC @ 10 V | 45.5 nC @ 10 V |
| Vgs (Max) | ±25V | ±25V | ±25V | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 1515 pF @ 100 V | 1960 pF @ 100 V | 1500 pF @ 100 V | 1781 pF @ 100 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 35W (Tc) | 40W (Tc) | 35W (Tc) | 35W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220FP | TO-220FP | TO-220FP | TO-220FP |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
