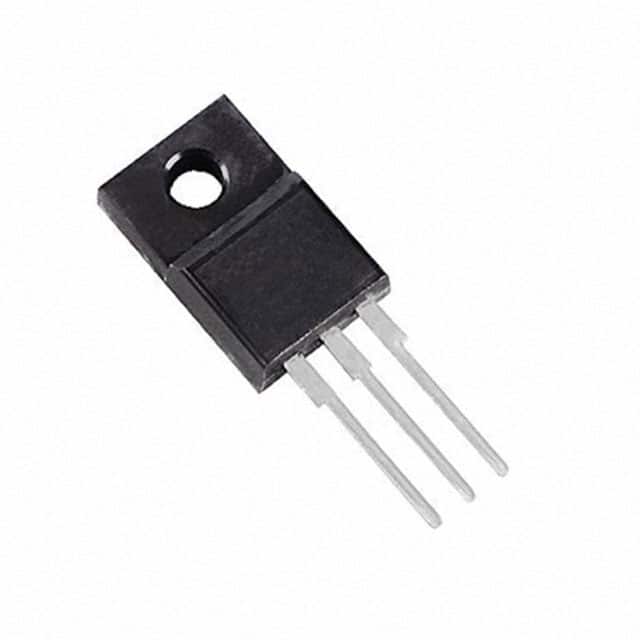

| Part Number | STF2N95K5 | STF5N95K5 | STF6N95K5 | STF20N95K5 |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 950 V | 950 V | 950 V | 950 V |
| Current - Continuous Drain (Id) @ 25°C | 2A (Tc) | 3.5A (Tc) | 9A (Tc) | 17.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 5Ohm @ 1A, 10V | 2.5Ohm @ 1.5A, 10V | 1.25Ohm @ 3A, 10V | 330mOhm @ 9A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 100µA | 5V @ 100µA | 5V @ 100µA | 5V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC @ 10 V | 12.5 nC @ 10 V | 13 nC @ 10 V | 40 nC @ 10 V |
| Vgs (Max) | 30V | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 105 pF @ 100 V | 220 pF @ 100 V | 450 pF @ 100 V | 1500 pF @ 100 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 20W (Tc) | 25W (Tc) | 25W (Tc) | 40W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220FP | TO-220FP | TO-220FP | TO-220FP |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
