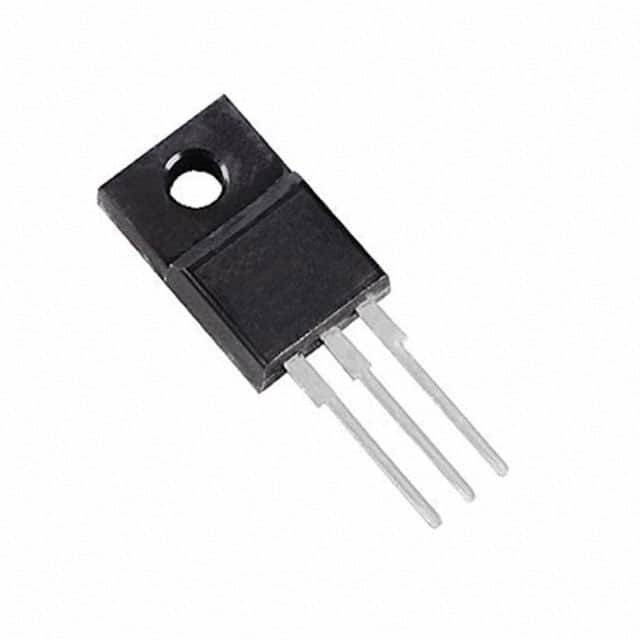

| Part Number | STF26NM60ND | STF28NM60ND | STF21NM60ND | STF22NM60ND | STF23NM60ND | STF25NM60ND | STF26NM60N |
|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Not For New Designs | Obsolete | Obsolete | Active | Obsolete | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 21A (Tc) | 23A (Tc) | 17A (Tc) | 17A (Tc) | 19.5A (Tc) | 21A (Tc) | 20A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 175mOhm @ 10.5A, 10V | 150mOhm @ 11.5A, 10V | 220mOhm @ 8.5A, 10V | 220mOhm @ 8.5A, 10V | 180mOhm @ 10A, 10V | 160mOhm @ 10.5A, 10V | 165mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 54.6 nC @ 10 V | 62.5 nC @ 10 V | 60 nC @ 10 V | 60 nC @ 10 V | 70 nC @ 10 V | 80 nC @ 10 V | 60 nC @ 10 V |
| Vgs (Max) | ±25V | ±25V | ±25V | ±25V | ±25V | ±25V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1817 pF @ 100 V | 2090 pF @ 100 V | 1800 pF @ 50 V | 1800 pF @ 50 V | 2050 pF @ 50 V | 2400 pF @ 50 V | 1800 pF @ 50 V |
| FET Feature | - | - | - | - | - | - | - |
| Power Dissipation (Max) | 35W (Tc) | 35W (Tc) | 30W (Tc) | 30W (Tc) | 35W (Tc) | 40W (Tc) | 35W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220FP | TO-220FP | TO-220FP | TO-220FP | TO-220FP | TO-220FP | TO-220FP |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
