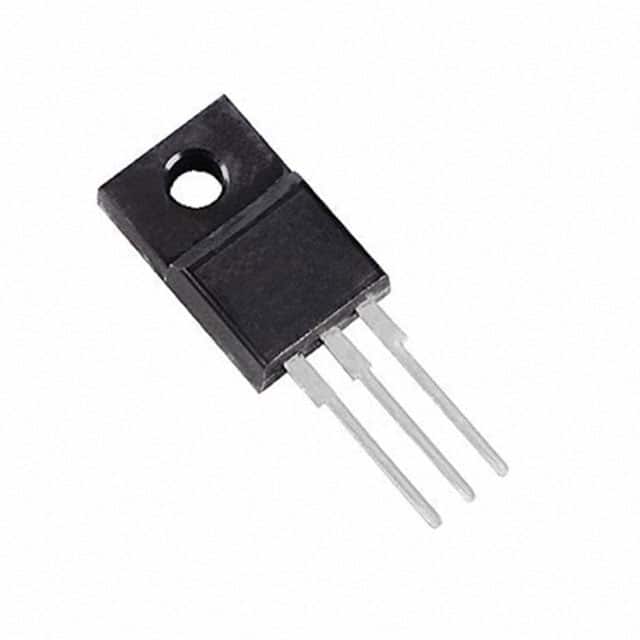

| Part Number | STF18N60M2 | STF18N60M6 | STF18N65M2 | STF28N60M2 | STF10N60M2 | STF12N60M2 | STF13N60M2 | STF16N60M2 | STF18N60DM2 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V | 650 V | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 13A (Tc) | 13A (Tc) | 12A (Tc) | 24A (Tc) | 7.5A (Tc) | 9A (Tc) | 11A (Tc) | 12A (Tc) | 13A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V | 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 280mOhm @ 6.5A, 10V | 280mOhm @ 6.5A, 10V | 330mOhm @ 6A, 10V | 150mOhm @ 12A, 10V | 600mOhm @ 4A, 10V | 450mOhm @ 4.5A, 10V | 380mOhm @ 5.5A, 10V | 320mOhm @ 6A, 10V | 295mOhm @ 6A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4.75V @ 250µA | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 21.5 nC @ 10 V | 16.8 nC @ 10 V | 20 nC @ 10 V | 37 nC @ 10 V | 13.5 nC @ 10 V | 16 nC @ 10 V | 17 nC @ 10 V | 19 nC @ 10 V | 20 nC @ 10 V |
| Vgs (Max) | ±25V | ±25V | ±25V | ±25V | ±25V | ±25V | ±25V | ±25V | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 791 pF @ 100 V | 650 pF @ 100 V | 770 pF @ 100 V | 1370 pF @ 100 V | 400 pF @ 100 V | 538 pF @ 100 V | 580 pF @ 100 V | 700 pF @ 100 V | 800 pF @ 100 V |
| FET Feature | - | - | - | - | - | - | - | - | - |
| Power Dissipation (Max) | 25W (Tc) | 25W (Tc) | 25W (Tc) | 30W (Tc) | 25W (Tc) | 25W (Tc) | 25W (Tc) | 25W (Tc) | 25W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | 150°C (TJ) | -55°C ~ 150°C (TJ) | 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220FP | TO-220FP | TO-220FP | TO-220FP | TO-220FP | TO-220FP | TO-220FP | TO-220FP | TO-220FP |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
