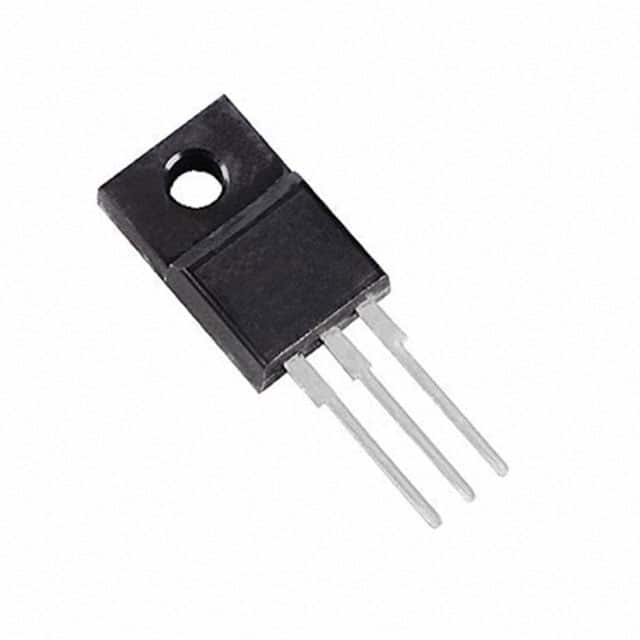

| Part Number | STF17N62K3 | STF10N62K3 |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 620 V | 620 V |
| Current - Continuous Drain (Id) @ 25°C | 15.5A (Tc) | 8.4A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 340mOhm @ 7.5A, 10V | 750mOhm @ 4A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 100µA | 4.5V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 105 nC @ 10 V | 42 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 3100 pF @ 50 V | 1250 pF @ 50 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 40W (Tc) | 30W (Tc) |
| Operating Temperature | 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | TO-220FP | TO-220FP |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack |
