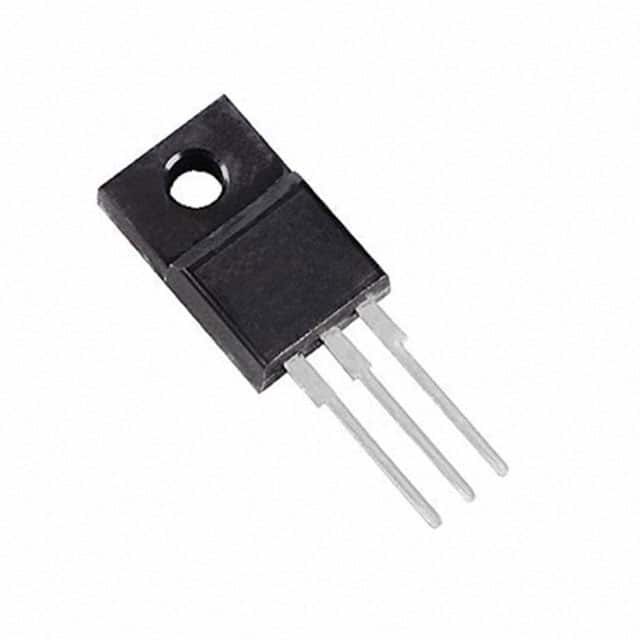

| Part Number | STF10NM50N | STF10NM60N | STF14NM50N | STF11NM50N | STF19NM50N | STF12NM50N | STF13NM50N | STF16NM50N |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Active | Active | Active | Active | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V | 600 V | 500 V | 500 V | 500 V | 500 V | 500 V | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 7A (Tc) | 10A (Tc) | 12A (Tc) | 8.5A (Tc) | 14A (Tc) | 11A (Tc) | 12A (Tc) | 15A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 630mOhm @ 3.5A, 10V | 550mOhm @ 4A, 10V | 320mOhm @ 6A, 10V | 470mOhm @ 4.5A, 10V | 250mOhm @ 7A, 10V | 380mOhm @ 5.5A, 10V | 320mOhm @ 6A, 10V | 260mOhm @ 7.5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA | 4V @ 100µA | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 17 nC @ 10 V | 19 nC @ 10 V | 27 nC @ 10 V | 19 nC @ 10 V | 34 nC @ 10 V | 30 nC @ 10 V | 30 nC @ 10 V | 38 nC @ 10 V |
| Vgs (Max) | ±25V | ±25V | ±25V | ±25V | ±25V | ±25V | ±25V | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 450 pF @ 50 V | 540 pF @ 50 V | 816 pF @ 50 V | 547 pF @ 50 V | 1000 pF @ 50 V | 940 pF @ 50 V | 960 pF @ 50 V | 1200 pF @ 50 V |
| FET Feature | - | - | - | - | - | - | - | - |
| Power Dissipation (Max) | 25W (Tc) | 25W (Tc) | 25W (Tc) | 25W (Tc) | 30W (Tc) | 25W (Tc) | 25W (Tc) | 30W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | -55°C ~ 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220FP | TO-220FP | TO-220FP | TO-220FP | TO-220FP | TO-220FP | TO-220FP | TO-220FP |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
