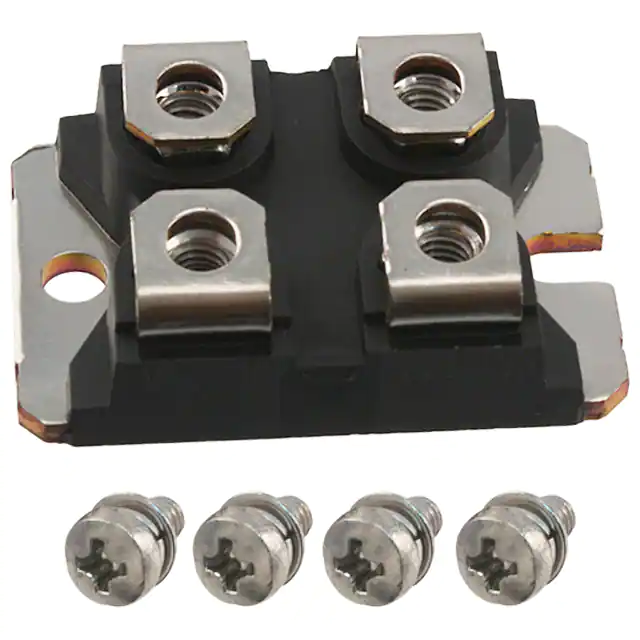

| Part Number | STE48NM60 | STE48NM50 |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V | 550 V |
| Current - Continuous Drain (Id) @ 25°C | 48A (Tc) | 48A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 110mOhm @ 22.5A, 10V | 100mOhm @ 24A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 134 nC @ 10 V | 117 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 3800 pF @ 25 V | 3700 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 450W (Tc) | 450W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Supplier Device Package | ISOTOP® | ISOTOP® |
| Package / Case | ISOTOP | ISOTOP |
