STMicroelectronics-STE40NK90ZD - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	900 V
Current - Continuous Drain (Id) @ 25°C:	40A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	180mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:	4.5V @ 150µA
Gate Charge (Qg) (Max) @ Vgs:	826 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	25000 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	600W (Tc)
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Supplier Device Package:	ISOTOP®
Package / Case:	ISOTOP

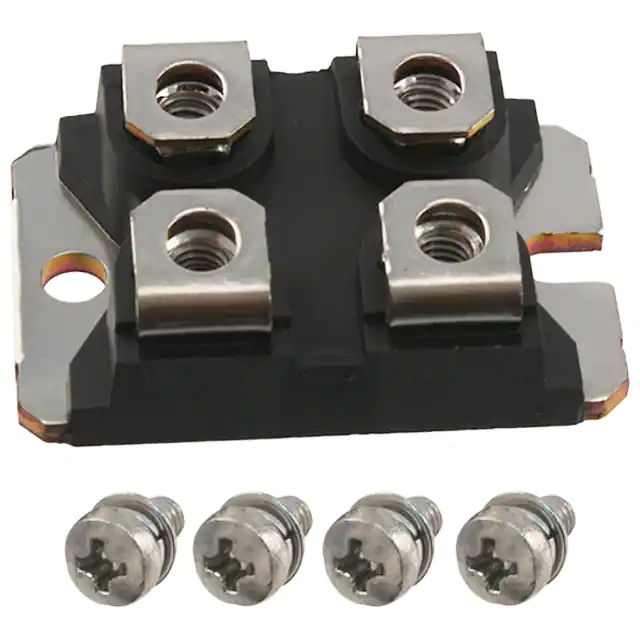

STMicroelectronics STE40NK90ZD
