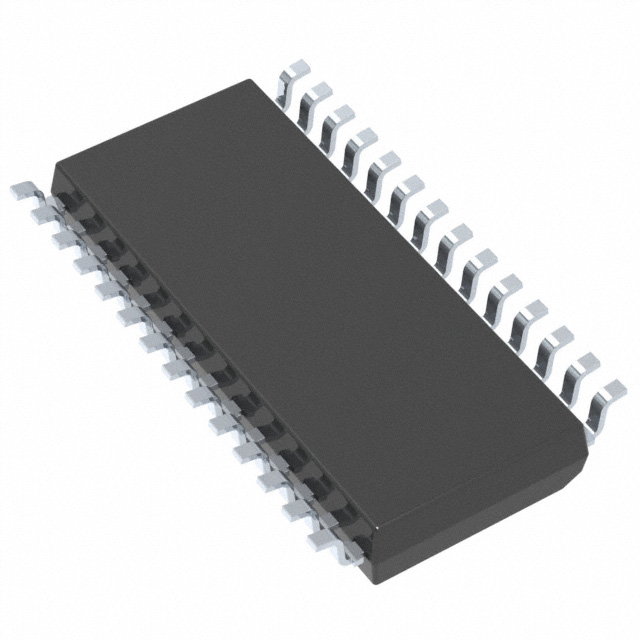

| Part Number | STDRIVE101TR | STDRIVE601TR |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active |
| Output Configuration | Half Bridge (3) | Half Bridge (3) |
| Applications | DC Motors, General Purpose | DC Motors, General Purpose |
| Interface | Analog, Logic | Analog, Logic |
| Load Type | Capacitive and Resistive | Capacitive and Resistive |
| Technology | Power MOSFET, IGBT | Power MOSFET, IGBT |
| Rds On (Typ) | 35Ohm | 35Ohm |
| Current - Output / Channel | - | - |
| Current - Peak Output | 430mA | 350mA |
| Voltage - Supply | 9V ~ 20V | 9V ~ 20V |
| Voltage - Load | 580V | 580V |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Features | Bootstrap Circuit | Bootstrap Circuit |
| Fault Protection | Over Current, Over Temperature, UVLO | Over Current, Over Temperature, UVLO |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SO | 28-SO |
