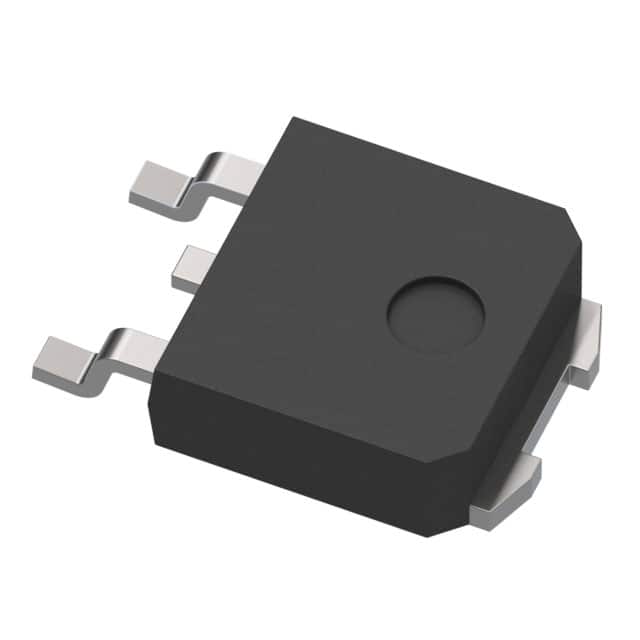

| Part Number | STD7N65M6 | STD7N65M2 |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 5A (Tc) | 5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 990mOhm @ 2.5A, 10V | 1.15Ohm @ 2.5A, 10V |
| Vgs(th) (Max) @ Id | 3.75V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 6.9 nC @ 10 V | 9 nC @ 10 V |
| Vgs (Max) | ±25V | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 220 pF @ 100 V | 270 pF @ 100 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 60W (Tc) | 60W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | D-PAK (TO-252) | DPAK |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
